9V battery (PP3, 6LR61)

What are the dimensions of a 9V battery? · Modern device · basis: Energizer 522 datasheet

Also called: 9v battery dimensions, 9 volt battery size, pp3 dimensions, medidas pila 9V, dimensões pilha 9V, 9V Batterie Maße, dimensions pile 9V

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

length
26.5 mm
width
17.5 mm
height
48.5 mm

Notes

  • 9V (PP3 / 6LR61): 46.5–48.5 mm tall, 24.5–26.5 × 15.5–17.5 mm body; snap terminals 12.45–12.95 mm apart (centres).
  • The file is the maximum body envelope (terminals not modelled).

9V battery size chart

dimensionvalue
height46.5–48.5 mm
body24.5–26.5 × 15.5–17.5 mm
terminal spacing12.45–12.95 mm

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
PP3 / 6LR6146.5–48.5 tall, 24.5–26.5 × 15.5–17.5 body; snap terminals 12.45–12.95 apart (centres)9 V snap clip and holder cavityslideall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Energizer522 (9V) datasheetwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
9v-body-maxMaximum body envelopeSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=9v-battery

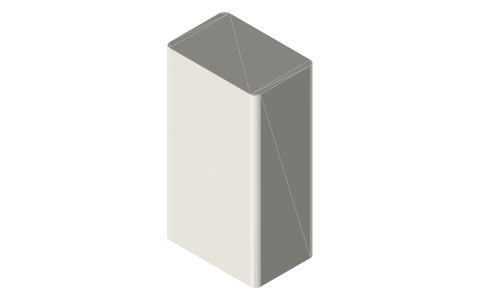

9V battery (PP3, 6LR61), isometric render of a generated part
Render of 9v-body-max from the free STEP; not to scale.

Fits with

Questions

How big is a 9V battery?

Up to 26.5 × 17.5 × 48.5 mm.
