Annular wire-screen stack Ø48 / Ø42 × 40, 50 mesh × 0.22 mm wire

What annular screen stack fits between a 48 mm bore and a 42 mm liner? · Hardware · basis: Porosity of stacked square-weave screens 1 − π m d / 4; friction and heat transfer from the Urieli & Berchowitz screen correlations

Also called: stirling regenerator mesh size, wire screen regenerator, annular regenerator stack

Long Earth Society build part. The regenerator of my performance engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • Annular screens punched Ø48.00 outside, Ø42.00 inside, stacked 40 mm deep on the liner's neck: about 91 screens of 50 mesh (per inch) × 0.22 mm wire, porosity 0.660, hydraulic diameter 0.43 mm.
  • Gas volume in the stack 11.2 mL. In the cycle model its effectiveness is 0.966 on charged air at 600 rpm and 0.980 on helium at 1200 rpm.
  • Finer screens raise the effectiveness and the pumping loss together; I swept 0.10 to 0.30 mm wire and 0.22 mm was the best shaft power on air and on helium.

Annular wire-screen stack Ø48 / Ø42 × 40, 50 mesh × 0.22 mm wire size chart

itemvalue
envelopeØ48.00 / Ø42.00 × 40
screen50 mesh × 0.22 wire
count≈ 91
porosity0.66

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
outsideØ48.00hot-spool finished boreslideall
insideØ42.00liner neckslideall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Ohio University (I. Urieli)Stirling cycle machine analysis (after Urieli & Berchowitz, Stirling Cycle Engine Analysis, 1984): Schmidt and simple analyses, wire-screen regenerator friction fr = 54 + 1.43 Re^0.78 and St = 0.46 Re^−0.4 / Prwebuniversity course pages verify
NASA (W. R. Martini)Stirling Engine Design Manual, 2nd edition, NASA CR-168088 (1983): decoupled second-order losses (shuttle, conduction, flow friction, regenerator)PDFUS government report
Cambridge University Press (J. R. Senft)Mechanical Efficiency of Heat Engines (2007): shaft work = E·W − (1/E − E)·W_forcedbookbook; formula cited verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
screen-stack-48x42x40-50meshregenerator screen stack envelope Ø48.00 / Ø42.00 × 40: about 91 annular screens, 50 mesh × 0.22 wire (porosity 0.66)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=annular-wire-screen-stack-48-42

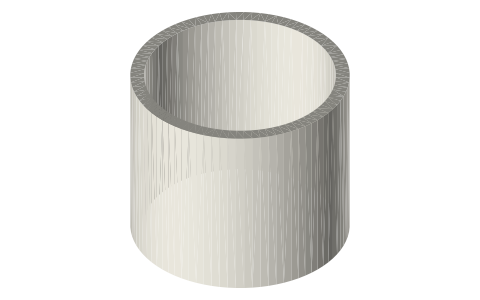

Annular wire-screen stack Ø48 / Ø42 × 40, 50 mesh × 0.22 mm wire, isometric render of a generated part
Render of screen-stack-48x42x40-50mesh from the free STEP; not to scale.

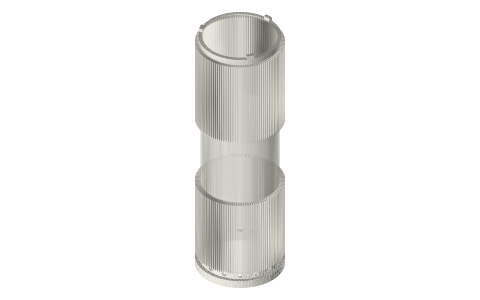

Fits with

Questions

Can I use a different screen?

Yes; keep the stack length and the porosity near 0.66 and re-run the numbers.
