Apple AirPods Max

What are the dimensions of the Apple AirPods Max? · Modern device · basis: Apple accessory dimensional drawing (developer.apple.com/accessories); numbers transcribed by Xem Studio

Also called: apple airpods max dimensions, airpods max size, apple airpods max medidas, apple airpods max Maße

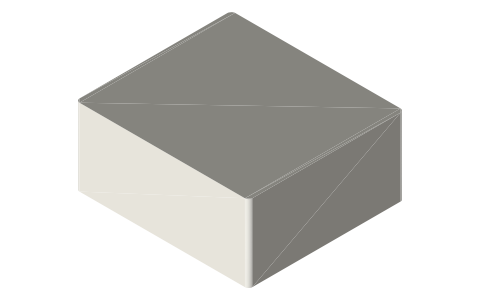

Exact dimensions. True size, with no tolerance added.

length
167.85 mm
width
168.62 mm
height
83.44 mm

Notes

  • From Apple's dimensional drawing for AIRPODS MAX: the numbers below are as printed (Apple's drawing is linked, not copied). No body file: the drawing does not dimension the outline fully enough to build a true shape without guessing.
  • Apple's notes for accessory makers: 1 MEASURE MAGNETIC FLUX USING FLUX PROBE WITH CUPS ROTATED TO 'ON-HEAD' POSITION (AS SHOWN); 2. NO METAL CONTACT WITH PRODUCT; 3 DO NOT OBSTRUCT PORTS; 4 DO NOT OBSTRUCT OPTICAL WINDOWS; 5 DO NOT APPLY PERSISTENT FORCE TO NOISE CONTROL BUTTON OR DIGITAL CROWN; 6 DO NOT APPLY PERSISTENT FORCE TO CANOPY, CUSHION, OR ELASTOMER SKIN ON HEADBAND; 7 DO NOT APPLY POINT LOADS TO CANOPY, CUSHION, OR ELASTOMER SKIN ON HEADBAND; 8 DO NOT RESTRICT MOTION OF EAR CUP WITH RESPECT TO HEADBAND; 9 DO NOT RESTRICT MOTION OF SLIDING ARMS ON HEADBAND; Sheet 2 'STAND DATUMS RELATIVE TO AIRPODS MAX': datum A horizo
  • Apple AirPods Max: 187.3 × 168.6 × 83.4 mm (H × W × D with cushions), 386.2 g. USB-C model 386.2 g, Lightning model 384.8 g (same size); Smart Case 134.5 g.
  • Overall envelope only: buttons, ports, hinges and mounting features are not published (scan planned where it matters). The file is the envelope.

Apple AirPods Max size chart

parametervalue
width × length × thickness168.62 × 167.85 × 83.44 mm
overall (as printed)AS WORN: 168.62 (overall width, front view)
overall (as printed)AS WORN: 167.85 (overall height, front view)
overall (as printed)AS WORN top view: 83.44 (overall depth), 41.72 (depth to centreline), 19.65, 44.15, 30.75, 11.22
overall (as printed)AS WORN front view: 19.43, 12.83 (headband/canopy heights), 9.82 (gap between cups), 103.39 (cup length, along tilted cup), 43.06 (cup thickness, tilted)
overall (as printed)AS STOWED: 193.23 (overall height), 104.54, 7.10 (gap between cups), 199.84 (overall width, bottom view), 43.06, 51.94, 7.79
ear cup (right) overallwidth 83.44 (x 0.00..83.44), height 103.28 max (y 0.00..103.28), depth 26.52 (top view 0.00..26.52)
ear cup front-view outline profile points [x from left edge, y up from bottom edge], going round from left mid-side over the top, down the right side, along the bottom and back[[0.0, 51.67], [0.5, 65.04], [2.74, 78.22], [8.49, 90.22], [18.71, 98.69], [28.93, 102.18], [32.85, 102.86], [36.82, 103.28], [41.72, 102.08], [46.62, 103.28], [50.55, 102.87], [54.44, 102.2], [66.05,
ear cup top-view outline points [x from crown-side edge, y from outer face]; only left half printed, symmetric about x=41.72 centreline presumed by drawing[[0.0, 13.33], [3.03, 6.44], [7.52, 0.47], [6.52, 22.39], [18.02, 25.19], [29.85, 26.22], [41.72, 26.52]]
ear cup side-view outline labels (pairing not certain, see unsure)x (inset, 0.00 at right/inner side): top 26.32, 25.66, 24.07, 18.23, 8.44, 4.91, 0.47, 0.00; bottom 26.52, 26.29, 25.52, 23.45, 14.83, 13.33, 8.91, 5.07, 0.47, 0.00. y: 103.25, 102.05, 90.74, 77.77, 6
top-of-cup mic/feature positions (top view)8.92 (top edge to mic slot, both sides), 1.66 (slot size), 5.36, 9.79 (right-side feature extents)
Lightning port (bottom view, sheet 4)37.35 (left edge to port), 8.74, Ø0.81 (small hole beside port), 0.90, 9.27, 2.98, 11.84, 40.07, 3.30, 48.25, 1.67, 8.91; DETAIL E (5:1): 13.65 x 6.85 RECOMMENDED CONNECTOR KEEPOUT
USB-C port (bottom view, sheet 5)36.97, 9.49, Ø0.81, 0.90, 9.27, 3.63, 11.51, 40.07, 3.30, 48.64, 1.67, 8.91; DETAIL H (5:1): 12.45 x 6.60 RECOMMENDED CONNECTOR KEEPOUT
cup sections (A-A/B-B Lightning, F-F/G-G USB-C, same numbers)2.43, 4.37, 12.00, 10.50 (top features, section A-A/F-F); 28.37, 28.37, 5.94, 5.94, 10.13, 3.64, 20.35, 25.14 (section B-B/G-G)
sliding armMAX EXTENSION APPX 25mm
named features (no numbers)digital crown, noise control button, LED, charging port, microphone ports, acoustic ports, antenna window, optical windows (left/right cup), canopy, cushions, elastomer skin
