Apple TV 4K (4th generation)
What are the exact dimensions of the Apple TV 4K (4th generation)? · Modern device · basis: Apple accessory dimensional drawing (developer.apple.com/accessories); numbers transcribed, geometry built by Xem Studio
Also called: Apple TV 4K (4th generation) dimensions, Apple TV 4K (4th generation) size, Apple TV 4K (4th generation) dimensional drawing
Exact dimensions. True size, with no tolerance added.
- length
- 93.24 mm
- width
- 93.24 mm
- height
- 31.0 mm
Notes
- From Apple's published dimensional drawing for Apple TV 4K (4th generation): 93.24 × 93.24 × 31 mm. The body file is built from the drawing's own numbers (corner-profile points, edge profile, camera and port positions): hollow it for a case, or subtract it (plus the case-cutouts file) to make a pocket, dock, tray or mount.
- Apple's notes for case makers: case thickness on the back 2.1 mm max; do not obstruct ports, cameras, flash or sensors; no metal contact; no magnets on the back except MagSafe.
- Sizes are exact nominal millimetres, true size: add your own clearance (for a printed case, typically a few tenths of a mm all round).
- From Apple's dimensional drawing for Apple TV 4K (4th generation): the numbers below are as printed (Apple's drawing is linked, not copied). No body file: the drawing does not dimension the outline fully enough to build a true shape without guessing.
- Apple's notes for accessory makers: 1. NOTE 2-4 ARE INTENDED TO PREVENT SYSTEM PERFORMANCE DEGRADATION DURING NORMAL USE. STANDS OR HOLDERS NOT INTENDED TO BE INPLACE DURING NORMAL USE CAN DISREGRAD BELOW NOTES.; 2 NO MATERIAL TO CONTACT,OVERLAP OR OBSTRUCT ANY PORTION OF IR WINDOW. RECOMMENDED MIN CLEARANCE 0.5MM FROM KEEPOUT BOUNDARY.; 3 NO MATERIAL TO CONTACT,OVERLAP OR OBSTRUCT ANY PORTION OF ANTENNA KEEPOUT AREA. RECOMMENDED MIN CLEARANCE 0.5MM FROM KEEPOUT BOUNDARY.; 4 NO MATERIAL TO CONTACT,OVERLAP OR OBSTRUCT ANY PORTION OF SYSTEM INDICATOR LIGHT/ MIC AREA RECOMMENDED MIN CLEARANCE 0.5MM FROM HOLE EDGE.
Apple TV 4K size chart
| parameter | value |
|---|---|
| width × length × thickness | 93.24 × 93.24 × 31 mm |
| overall (as printed) | 93.24 (top view, horizontal) |
| overall (as printed) | 93.24 (top view, vertical) |
| overall (as printed) | 31.00 (side view) |
| overall (as printed) | 3.00 (side view, base step) |
| overall (as printed) | 2X 12.70 (side view, mic height) |
| corner profile points (x from side, y from top) | (0, 25.83); (0.02, 23.83); (0.07, 21.83); (0.17, 19.83); (0.39, 17.84); (0.74, 15.87); (1.24, 13.94); (1.93, 12.07); (2.81, 10.26); (3.87, 8.56); (5.09, 6.99); (6.48, 5.55); (8.01, 4.27); (9.67, 3.15); (11.43, 2.21); (13.29, 1.46); (15.21, 0.89); (17.16, 0.49); (19.15, 0.23); (21.14, 0.09); (23.14, 0.03); (25.14, 0.01) |
| IR keepout (note 2) | 18.08 wide x 13.04 high, centre 24.48 above bottom (FRONT VIEW); 18.08 x 1.38 on top view |
| front mic / indicator light (note 4) | Ø1.25 on CL, 12.70 above bottom |
| left/right mic (note 4) | 2X Ø0.90, 2X 12.70 |
| power inlet | 16.65 x 8.36, 23.35 left of CL, 16.43 |
| Ethernet | 12.78 x 10.23, on CL, 17.38 |
| HDMI | 14.29 x 4.85, 22.22 right of CL, 16.43 |
| antenna keepout areas (note 3) | 77.77, 13.26, 52.77, 27.87, 2X 14.99, 65.56, 32.76, 60.48, 7X 7.50, 15.47 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Apple | Apple TV 4K (4th generation) dimensional drawing (Accessory Design Guidelines) | Apple's terms; linked, not hosted |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.

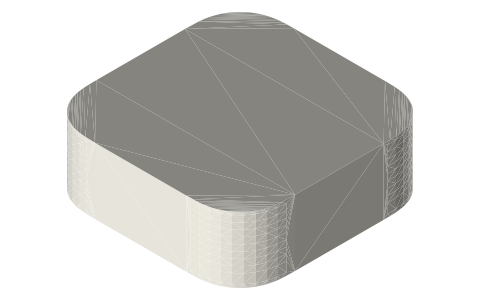

| apple-tv-4k-4th-generation-body | Apple TV 4K (4th generation) at true size: outline from Apple's corner-profile points, side profile, camera Sides drawn straight: the drawing does not dimension the edge profile. | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=apple-tv-4k-4th-generation

Questions
What are the Apple TV 4K (4th generation) dimensions in mm?
93.24 × 93.24 × 31.0 mm (length × width × height). From Apple's published dimensional drawing for Apple TV 4K (4th generation): 93.24 × 93.24 × 31 mm. The body file is built from the drawing's own numbers (corner-profile points, edge profile, camera and port positions): hollow it for a case, or subtract it (plus the case-cutouts file) to make a pocket, dock, tray or mount.
