Axial AXIC4407 ball bearing, 5 × 14 × 5 mm

What size is Axial bearing AXIC4407? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXIC4407, axial AXIC4407, Axial part AXIC4407, AXIC4407 ax31407 bearing 5x14x5mm, Axial AXIC4407 size, Axial AXIC4407 dimensions, Axial AXIC4407 replacement, repuesto Axial AXIC4407, Axial AXIC4407 Ersatzteil

Exact dimensions. True size, with no tolerance added.

length
14.01 mm
width
14.01 mm
height
5.01 mm

Notes

  • Axial part AXIC4407: AX31407 Bearing 5x14x5mm (2). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • Bearing envelope 5 × 14 × 5 mm (bore × OD × width).
  • True size, no printing tolerance added.

Axial AXIC4407 ball bearing, 5 × 14 × 5 mm size chart

dimensionvalue
part numberAxial AXIC4407
name (as printed)AX31407 Bearing 5x14x5mm (2)
size (as printed)5x14x5mm
bore5 mm
outside diameter14 mm
width5 mm
seals / ballsas printed in the name; not modelled
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 59webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
axial-axic4407-ax31407-bearing-5x14x5mm-envelopeBearing envelope 5 × 14 × 5 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axic4407-ax31407-bearing-5x14x5mm

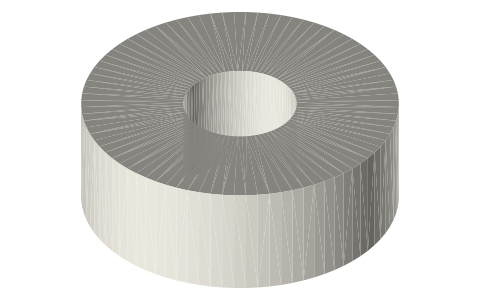

Axial AXIC4407 ball bearing, 5 × 14 × 5 mm, isometric render of a generated part
Render of axial-axic4407-ax31407-bearing-5x14x5mm-envelope from the free STEP; not to scale.

Fits with

Questions

What size is Axial bearing AXIC4407?

5 × 14 × 5 mm
