Ball-ended tube: Ø30 ball on a Ø12 tube, Ø8 bore through

What is the ball half of a tube ball joint? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: ball joint tube, spherical tube joint, tubo con rótula, Kugelrohrende

Exact dimensions. True size, with no tolerance added.

length
30.0 mm
width
30.0 mm
height
59.46 mm

Notes

  • Ø30 ball with a Ø12 tube 45 mm long coming out of it, Ø8 bore through both: it seats in the spherical cup of the socket and can swing in any direction while the bore stays connected.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Ball-ended tube: Ø30 ball on a Ø12 tube, Ø8 bore through size chart

dimensionvalue
ballØ30
tubeØ12 × 45 from the ball centre
boreØ8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 249: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ball-end-tube-d30-12x8ball centre at the origin, tube along +ZSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=ball-end-tube-d30-12x8

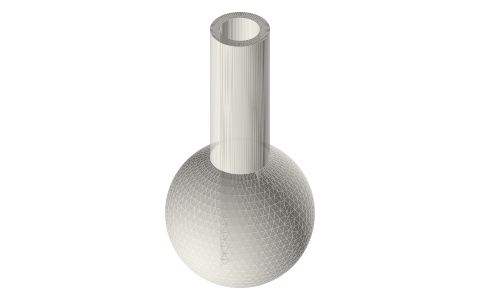

Ball-ended tube: Ø30 ball on a Ø12 tube, Ø8 bore through, isometric render of a generated part
Render of ball-end-tube-d30-12x8 from the free STEP; not to scale.

Fits with

Questions

What is the ball half of a tube ball joint?

Ø30 ball with a Ø12 tube 45 mm long coming out of it, Ø8 bore through both: it seats in the spherical cup of the socket and can swing in any direction while the bore stays connected.
