Ball-joint cap: Ø40 × 8 ring with an R15 spherical seat and 3 × Ø3.4 holes

What holds the ball in the socket? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: ball joint cap, gland ring, tapa de rótula, Kugelgelenk-Deckel

Exact dimensions. True size, with no tolerance added.

length
40.0 mm
width
40.0 mm
height
8.0 mm

Notes

  • Ø40 × 8 ring whose bore is the R15 sphere between z 0 and 8 (opening Ø25.38 at the top, smaller than the Ø30 ball), so screwed down on the socket it holds the ball in; three Ø3.4 holes for M3 screws.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Ball-joint cap: Ø40 × 8 ring with an R15 spherical seat and 3 × Ø3.4… size chart

dimensionvalue
ringØ40 × 8
seatR15 sphere
openingØ25.38
holes3 × Ø3.4 on Ø32

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 249: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ball-joint-cap-d40-r15cap, sphere centre at the origin, z 0..8STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=ball-joint-cap-d40-r15

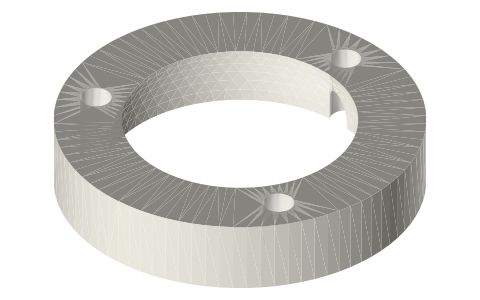

Ball-joint cap: Ø40 × 8 ring with an R15 spherical seat and 3 × Ø3.4 holes, isometric render of a generated part
Render of ball-joint-cap-d40-r15 from the free STEP; not to scale.

Fits with

Questions

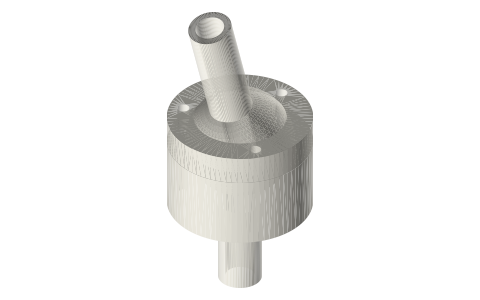

What holds the ball in the socket?

Ø40 × 8 ring whose bore is the R15 sphere between z 0 and 8 (opening Ø25.38 at the top, smaller than the Ø30 ball), so screwed down on the socket it holds the ball in; three Ø3.4 holes for M3 screws.
