Ball-joint socket: Ø40 body with an R15 hemispherical cup on a Ø12 tube, 3 × Ø2.5 (M3 tap) holes

What is the socket of a tube ball joint? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: ball socket, socket cup, cazoleta de rótula, Kugelpfanne

Exact dimensions. True size, with no tolerance added.

length
40.0 mm
width
40.0 mm
height
45.0 mm

Notes

  • Ø40 × 20 body with a hemispherical R15 cup (the ball's own radius, line on line) and a Ø12 × 25 tube below it, Ø8 bore through; three Ø2.5 holes on a Ø32 circle are tapped M3 for the cap screws.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Ball-joint socket: Ø40 body with an R15 hemispherical cup on a Ø12… size chart

dimensionvalue
bodyØ40 × 20
cupR15 hemisphere
tubeØ12 × 25, Ø8 bore
cap holes3 × Ø2.5 (M3 tap) on Ø32

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 249: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ball-joint-socket-d40-cup-r15cup centre at the origin, body z −20..0STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=ball-joint-socket-d40-cup-r15

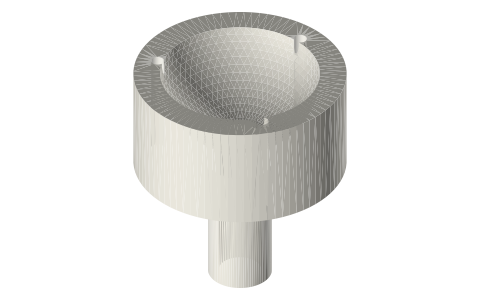

Ball-joint socket: Ø40 body with an R15 hemispherical cup on a Ø12 tube, 3 × Ø2.5 (M3 tap) holes, isometric render of a generated part
Render of ball-joint-socket-d40-cup-r15 from the free STEP; not to scale.

Fits with

Questions

What is the socket of a tube ball joint?

Ø40 × 20 body with a hemispherical R15 cup (the ball's own radius, line on line) and a Ø12 × 25 tube below it, Ø8 bore through; three Ø2.5 holes on a Ø32 circle are tapped M3 for the cap screws.
