Barrel (cylindrical) cam Ø40, 15 mm stroke
What is a barrel cam? · Modern device · basis: Xem Studio drawing
Also called: barrel cam, cylindrical cam
Exact dimensions. True size, with no tolerance added.
- sizes
- 3 in table
Notes

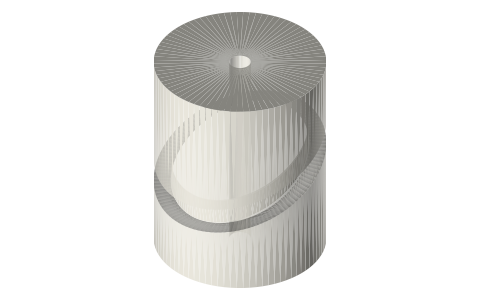

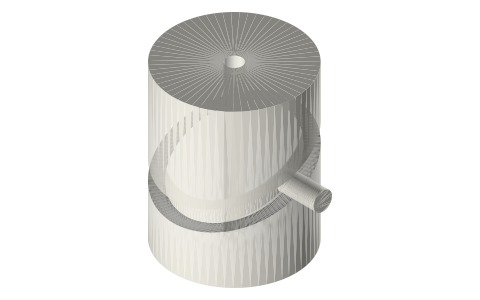

- Ø40 × 50 cylinder with a 6.4 mm groove that rises and falls 15 mm per turn (sine path): a pin in the groove reciprocates along the axis.
Barrel (cylindrical) cam Ø40, 15 mm stroke size chart
| dimension | value |
|---|---|
| diameter | 40 mm |
| length | 50 mm |
| groove | 6.4 mm, sine, 15 mm stroke |
