Bearing pedestal with two 623 bearings

What pedestal holds a shaft on two 623 bearings? · Hardware · basis: My geometry: crank axis 169 above the top plate, set by the 5 mL glass syringe (105 long) plus clevis and 45 mm con-rod; both cranks overhung, one each side of the block

Also called: ltd stirling crank support, mug stirling crank pedestal

Long Earth Society build part. Crank support of the mug LTD. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Both cranks are overhung: the flywheel crank on the displacer side and a crank disc on the syringe side, with a Ø3 × 30 shaft in two 623s in one 10 mm bearing block between them. No con-rod crosses the shaft, so nothing in the mechanism meets it at top dead centre.
  • The post stands beside the syringe (y −27..−13) so the plunger clevis and barrel collar pass it; the foot's two arms reach round the syringe socket boss to two M3 × 8 at (35.5, ±20.5), through the top plate into tapped holes in the ring.
  • The crank height comes from the glass syringe: its 105 mm barrel stands in the top plate, the plunger clevis pin is 12 above the plunger collar, and the con-rod is 45.

Bearing pedestal with two 623 bearings size chart

featurevalue (mm)
crank axis above top plate169.0
bearing blockx 15.5..25.5
bearings2 × 623

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
bearing pocketsØ10 × 4, one in each face of the block623 bearing OD 10pressall
shaft clearanceØ5Ø3 shaft (no contact)designedall
foot holesØ3.4M3 clearancedesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mug-ltd-crank-pedestalcrank pedestal: foot with two arms round the syringe boss (to x 38.5) with 2 × Ø3.4, post 10 × 14 beside the syringe, bearing block 10 thick at x 15.5..25.5 with a 623 pocket (Ø10 × 4) in each face and Ø5 between, axis 169 above the top plateSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=bearing-pedestal-623

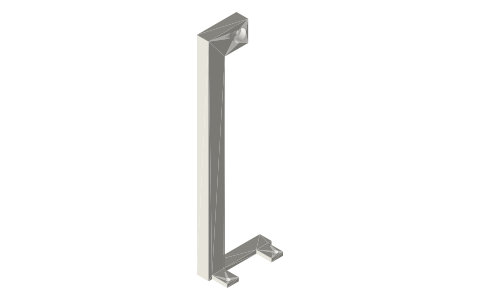

Bearing pedestal with two 623 bearings, isometric render of a generated part
Render of mug-ltd-crank-pedestal from the free STEP; not to scale.

Fits with

Questions

Why is the mug LTD so tall?

The glass syringe is 105 mm long and stands upright in the top plate; the crank sits a con-rod length above its plunger.
