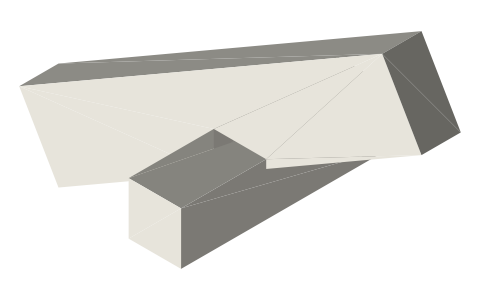

Bird's mouth joint (rafter seat)
How deep is a bird's mouth cut? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: birds mouth, bird's mouth cut, birdsmouth joint, rafter seat cut, boca de pájaro, corte de pájaro, Kerve, Sparrenkerve
Exact dimensions. True size, with no tolerance added.
- length
- 153.6 mm
- width
- 80.0 mm
- height
- 106.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- The V notch that seats a sloping rafter on a wall plate: a level seat cut and a plumb heel cut.
Bird's mouth joint size chart
| dimension | value |
|---|---|
| stock | 20 × 20 plate, 15 × 30 rafter |
| parts | plate, rafter |
| pitch | 30° |
| notch | seat cut and heel cut, about a third of the rafter depth |
| assembles | the rafter sits on the plate |
| holds | the rafter from sliding off the plate |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Joinery design (geometry computed in the generator from traditional proportions) | web | Xem Studio design |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| birds-mouth-joint-plate | Wall plate (20 × 20) | STEP · STL |
| birds-mouth-joint-rafter | Rafter 15 × 30 at 30° with the bird's mouth notch | STEP · STL |
| birds-mouth-joint-assembled | All parts in their assembled position (each part its own solid) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=birds-mouth-joint

Fits with
Questions
How deep can a bird's mouth be?
No more than a third of the rafter depth.
