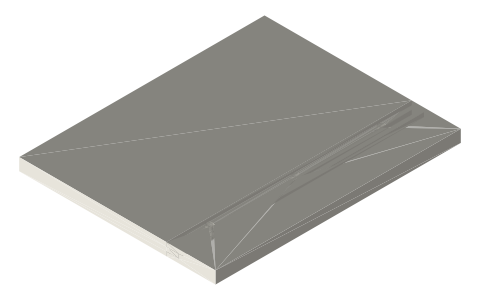

Breadboard end
How does a breadboard end let a panel move? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: breadboard end joint, breadboard end table top, breadboard end dimensions, testero, Hirnleiste, Hirnholzleiste
Exact dimensions. True size, with no tolerance added.
- length
- 160.0 mm
- width
- 200.0 mm
- height
- 10.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- A cap across the end of a panel: the centre peg fixes it, the outer pegs sit in slots so the panel can move. For prints, the same trick lets a long part expand without cracking its frame.
Breadboard end size chart
| dimension | value |
|---|---|
| stock | 10 mm boards, 200 mm wide panel |
| parts | panel, breadboard, peg 1, peg 2, peg 3 |
| tongue | 3.33 × 10 mm |
| pegs | three Ø5; the outer holes in the tongue are slotted ±3 mm |
| assembles | end cap onto the tongue, pegs through |
| holds | the panel flat while letting it grow and shrink across its width |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Joinery design (geometry computed in the generator from traditional proportions) | web | Xem Studio design |
Free files
★ Free files 6 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| breadboard-end-joint-panel | Panel with a full-width tongue; outer peg holes elongated | STEP · STL |
| breadboard-end-joint-breadboard | End cap with the groove and round peg holes | STEP · STL |
| breadboard-end-joint-peg-1 | Ø5 peg | STEP · STL |
| breadboard-end-joint-peg-2 | Ø5 peg | STEP · STL |
| breadboard-end-joint-peg-3 | Ø5 peg | STEP · STL |
| breadboard-end-joint-assembled | All parts in their assembled position (each part its own solid) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=breadboard-end-joint

Fits with
Questions
Why are the outer peg holes slotted?
So the panel can expand and shrink across its width while the cap stays put.
