Brick and concrete block sizes: US modular, UK, DIN 105 and CMU 4 to 12 in
What size is a standard brick? · Standard part · basis: ASTM C216 / BIA modular sizes (nominal minus a 3/8 in joint), BS EN 771-1 UK work size, DIN 105 formats, ASTM C90 CMU actual sizes (nominal minus 3/8 in)
Also called: standard brick size, brick dimensions, cinder block dimensions, 8x8x16 block actual size, uk brick size
Exact dimensions. True size, with no tolerance added.
- sizes
- 12 in table
Notes
- Concrete blocks are drawn as their outside envelope; core shapes vary by maker.

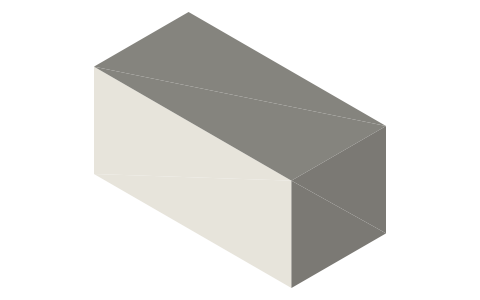

Brick and concrete block sizes: US modular, UK, DIN 105 and CMU 4 to… size chart
| unit | length (mm) | width (mm) | height (mm) |
|---|---|---|---|
| US modular brick | 193.7 | 92.1 | 57.1 |
| US standard brick | 203.2 | 92.1 | 57.1 |
| US queen brick | 193.7 | 69.8 | 69.8 |
| UK brick (BS EN 771-1 work size) | 215.0 | 102.5 | 65.0 |
| DIN 105 NF (Normalformat) | 240.0 | 115.0 | 71.0 |
| DIN 105 DF (Dünnformat) | 240.0 | 115.0 | 52.0 |
| DIN 105 2DF | 240.0 | 115.0 | 113.0 |
| CMU 4×8×16 | 396.9 | 92.1 | 193.7 |
| CMU 6×8×16 | 396.9 | 142.9 | 193.7 |
| CMU 8×8×16 | 396.9 | 193.7 | 193.7 |
| CMU 10×8×16 | 396.9 | 244.5 | 193.7 |
| CMU 12×8×16 | 396.9 | 295.3 | 193.7 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ASTM | ASTM C216 Facing brick; ASTM C90 Loadbearing concrete masonry units | standard | ASTM; dimensions are facts verify |
| DIN | DIN 105 Clay masonry units | standard | DIN; dimensions are facts verify |
Free files
★ Free files 12 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| us-modular-brick | US modular brick: 193.7 × 92.1 × 57.1 mm | STEP · STL |
| us-standard-brick | US standard brick: 203.2 × 92.1 × 57.1 mm | STEP · STL |
| us-queen-brick | US queen brick: 193.7 × 69.8 × 69.8 mm | STEP · STL |
| uk-brick | UK brick (BS EN 771-1 work size): 215.0 × 102.5 × 65.0 mm | STEP · STL |
| din-105-nf | DIN 105 NF (Normalformat): 240.0 × 115.0 × 71.0 mm | STEP · STL |
| din-105-df | DIN 105 DF (Dünnformat): 240.0 × 115.0 × 52.0 mm | STEP · STL |
| din-105-2df | DIN 105 2DF: 240.0 × 115.0 × 113.0 mm | STEP · STL |
| cmu-4x8x16 | 4 in CMU (concrete block), 4×8×16 nominal: actual 3-5/8 × 7-5/8 × 15-5/8 in envelope (cores not drawn) | STEP · STL |
| cmu-6x8x16 | 6 in CMU (concrete block), 6×8×16 nominal: actual 5-5/8 × 7-5/8 × 15-5/8 in envelope (cores not drawn) | STEP · STL |
| cmu-8x8x16 | 8 in CMU (concrete block), 8×8×16 nominal: actual 7-5/8 × 7-5/8 × 15-5/8 in envelope (cores not drawn) | STEP · STL |
| cmu-10x8x16 | 10 in CMU (concrete block), 10×8×16 nominal: actual 9-5/8 × 7-5/8 × 15-5/8 in envelope (cores not drawn) | STEP · STL |
| cmu-12x8x16 | 12 in CMU (concrete block), 12×8×16 nominal: actual 11-5/8 × 7-5/8 × 15-5/8 in envelope (cores not drawn) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=bricks-and-blocks

Fits with
Questions
US modular brick?
7-5/8 × 3-5/8 × 2-1/4 in.
8×8×16 block?
7-5/8 × 7-5/8 × 15-5/8 in.
