BSP (G) male thread envelopes 1/8 to 1 in (ISO 228-1)
What is the outside diameter of a G1/4 BSP thread? · Hardware · basis: ISO 228-1 (G, parallel) and ISO 7-1 (R / Rc, taper) BSP major diameters and TPI
Also called: g1/2 thread od, bsp thread sizes mm, g1/4 major diameter, bsp vs npt, bspp dimensions
Long Earth Society build part. Pressure-tap and thermocouple ports on the LES engine heads. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 6 in table
Notes

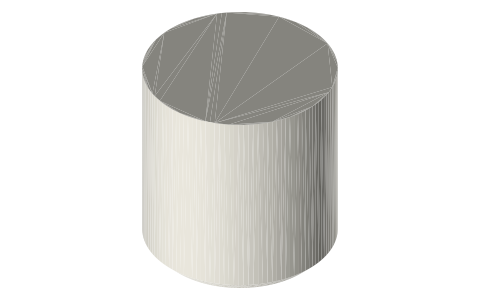

- Each file is a plain cylinder at the BSPP (G) major OD, 14 mm long, with a 0.8 mm chamfer on the end; the thread form is not modelled.
- Major OD: G1/8 9.73, G1/4 13.16, G3/8 16.66, G1/2 20.96, G3/4 26.44, G1 33.25 mm; 28, 19, 19, 14, 14 and 11 TPI.
- BSP is a 55° thread; parallel G seals on a washer or O-ring, taper R on the thread.
- BSP and NPT do not interchange: 1/2 NPT is 14 TPI 60° and 21.34 OD, G1/2 is 14 TPI 55° and 20.96 OD.
BSP (G) male thread envelopes 1/8 to 1 in size chart
| size | od (mm) | tpi | file length (mm) |
|---|---|---|---|
| G1/8 | 9.73 | 28 | 14 |
| G1/4 | 13.16 | 19 | 14 |
| G3/8 | 16.66 | 19 | 14 |
| G1/2 | 20.96 | 14 | 14 |
| G3/4 | 26.44 | 14 | 14 |
| G1 | 33.25 | 11 | 14 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| male BSPP (G) major Ø / TPI | G1/8 Ø9.73 / 28; G1/4 Ø13.16 / 19; G3/8 Ø16.66 / 19; G1/2 Ø20.96 / 14; G3/4 Ø26.44 / 14; G1 Ø33.25 / 11 | female G (55°, parallel) seals on a washer or O-ring; not interchangeable with NPT | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | National pipe thread | web | CC BY-SA 4.0 (text) |
| Wikipedia | British Standard Pipe | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds that use these parts (videos and write-ups) | web, video | LES site |
Free files
★ Free files 6 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| bsp-1-8-male | G1/8 BSPP male, major OD 9.73 mm, 28 TPI, 14 mm; plain cylinder at OD | STEP · STL |
| bsp-1-4-male | G1/4 BSPP male, major OD 13.16 mm, 19 TPI, 14 mm; plain cylinder at OD | STEP · STL |
| bsp-3-8-male | G3/8 BSPP male, major OD 16.66 mm, 19 TPI, 14 mm; plain cylinder at OD | STEP · STL |
| bsp-1-2-male | G1/2 BSPP male, major OD 20.96 mm, 14 TPI, 14 mm; plain cylinder at OD | STEP · STL |
| bsp-3-4-male | G3/4 BSPP male, major OD 26.44 mm, 14 TPI, 14 mm; plain cylinder at OD | STEP · STL |
| bsp-1-male | G1 BSPP male, major OD 33.25 mm, 11 TPI, 14 mm; plain cylinder at OD | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=bsp-thread-envelopes

Questions
What is the OD of G1/4?
13.16 mm, 19 TPI, 55° thread.
Are NPT and BSP interchangeable?
No: NPT is 60° and BSP 55°, the ODs differ (1/2 NPT 21.34 vs G1/2 20.96 mm) and 1/8, 1/4 and 3/8 have different TPI.
