Cam lock connectors Ø15 (Minifix-type): drilling table, housing clearance, hole caps

What size is an IKEA cam lock? · Hardware · basis: Häfele Minifix 15 catalogue drilling tables (without rim); hole caps are a Xem Studio design

Also called: ikea cam lock size, cam lock nut 15mm, minifix 15, cam bolt

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Flat-pack cam locks are Ø15 mm housings turned by PZ2 or a flat blade; the connecting bolt enters through a Ø5 hole (Ø7–8 for spreading dowels).
  • Drilling distance from the panel edge to the housing centre: 24 or 34 mm.
  • Depth and bolt-axis offset depend on board thickness (table). IKEA's own housing height is not published; these are catalogue values for the generic part.

Cam lock connectors Ø15 (Minifix-type): drilling table, housing… size chart

board (mm)housing dia (mm)drill depth (mm)bolt axis from face (mm)bolt hole (mm)
161512.58.05
181513.59.05
191514.09.55

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
housingØ15; hole depth 12.5 / 13.5 / 14.0 for 16 / 18 / 19 mm boardØ15 blind hole, centre 24 or 34 from the panel edge; turned by PZ2 or flat blade (Häfele Minifix 15 drilling table)designedcam-housing-envelope-*
bolt axis and holeaxis 8.0 / 9.0 / 9.5 from the face (16 / 18 / 19 board); hole Ø5connecting bolt hole Ø5 (Ø7–8 for spreading dowels)designedcam-housing-envelope-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

HäfeleConnector technology: Minifix 15webPublisher's page; dimensions are facts
Häfele UKMinifix 12/15 drilling guidewebPublisher's page; dimensions are facts

Free files

★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cam-housing-envelope-16mm-boardØ15 cam-lock housing clearance for a 16 mm board: drill Ø15 × 12.5 deep, bolt axis 8.0 from the faceSTEP · STL
cam-housing-envelope-18mm-boardØ15 cam-lock housing clearance for a 18 mm board: drill Ø15 × 13.5 deep, bolt axis 9.0 from the faceSTEP · STL
cam-housing-envelope-19mm-boardØ15 cam-lock housing clearance for a 19 mm board: drill Ø15 × 14.0 deep, bolt axis 9.5 from the faceSTEP · STL
cam-hole-cap-15mmPush-in cover cap for a Ø15 cam-lock hole (prints cap down)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cam-lock-15mm

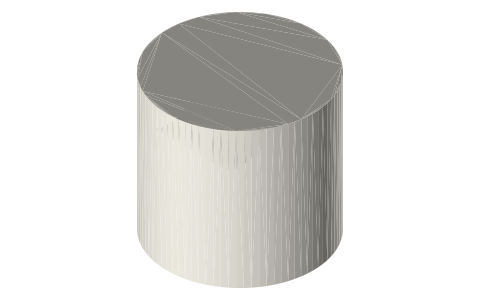

Cam lock connectors Ø15 (Minifix-type): drilling table, housing clearance, hole caps, isometric render of a generated part
Render of cam-housing-envelope-19mm-board from the free STEP; not to scale.

Fits with

Questions

What size is a flat-pack cam lock?

Ø15 mm housing; Ø5 hole for the bolt; housing centre 24 or 34 mm from the panel edge.
