Ceramic standoff Ø10 × 20 mm, Ø4.3 hole (M4)

What size ceramic standoff for M4 screws? · Hardware · basis: Standoff Ø10 × 20 with an ISO 273 fine M4 clearance hole (Ø4.3)

Also called: ceramic standoff m4, standoff 10x20 dimensions, high temperature standoff, ceramic spacer 10mm, hot end standoff

Long Earth Society build part. The regenerator packing and burner insulation on every LES engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • The file is a Ø10 × 20 mm cylinder with a Ø4.3 through hole, the ISO 273 fine clearance for an M4 screw.
  • Standoffs of this kind come in Ø6–12 × 10–30 mm.
  • They space the hot end off a frame so heat does not conduct into it; I use two on the cold-side mounts.

Ceramic standoff Ø10 × 20 mm, Ø4.3 hole size chart

standoffod (mm)length (mm)hole (mm)screw
ceramic-standoff-10x2010204.3M4

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
standoff holeØ4.3M4 screw clearance (ISO 273 fine)designedceramic-standoff-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaMesh (scale)webCC BY-SA 4.0 (text)
WikipediaRegenerative heat exchangerwebCC BY-SA 4.0 (text)
WikipediaSteel woolwebCC BY-SA 4.0 (text)
McMaster-CarrWire cloth (free STEP per part, for your own design use; no redistribution)STEP, PDFMcMaster-Carr site terms verify
Long Earth SocietyEngine and rig buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ceramic-standoff-10x20ceramic / steatite standoff Ø10 × 20, Ø4.3 hole (M4 clearance, ISO 273 fine)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=ceramic-standoff

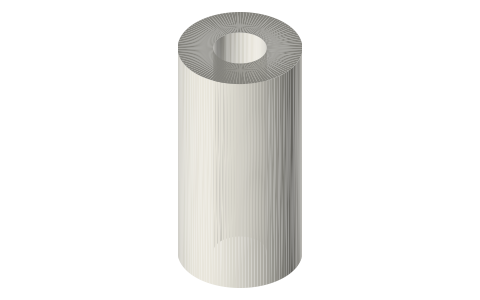

Ceramic standoff Ø10 × 20 mm, Ø4.3 hole (M4), isometric render of a generated part
Render of ceramic-standoff-10x20 from the free STEP; not to scale.

You might also need

Questions

What hole size for an M4 ceramic standoff?

Ø4.3, the ISO 273 fine clearance; the standoff is Ø10 × 20 mm.

What sizes do high-temperature standoffs come in?

Ø6–12 mm by 10–30 mm long; this file is Ø10 × 20.
