Chamber ring Ø76 × 23

What ring makes a 76 mm chamber between two plates? · Hardware · basis: 7 mm wall so the Ø5 syringe port at x 35 still opens into the chamber; 23 tall so a 6 mm displacer travels 15 with 1 mm at each end

Also called: ltd stirling chamber ring, mug stirling chamber

Long Earth Society build part. Chamber of the mug LTD. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Ø76 bore, Ø90 outside (7 wall), 23 tall; 5 × Ø3.4 for the chamber screws on R41 and 2 × M3 tapped 2 deep in the top face at (35.5, ±20.5) for the crank pedestal's foot.
  • Chamber 23 − displacer 6 = 17 free; the 15 mm stroke leaves 1 mm at the top and bottom of travel. 15 mm (7.5 throw) is the shortest stroke in the Ø3-bore crank discs whose con-rod eye (R4) clears a Ø3 shaft.

Chamber ring Ø76 × 23 size chart

featuresize (mm)
bore × height76 × 23
outsideØ90
displacer gap2 radial, 1 at each end of stroke

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ76displacer Ø72 (2 radial gap)designedall
screw holesØ3.4, 5 on R41M3 clearancedesignedall
pedestal holesØ2.5 × 2 deep (M3 tapped), at (35.5, ±20.5)shcs-m3x8 through the pedestal footdesignedall
facesflatbottom and top plates (static seal)clampall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Atlanta Vinyl StorePremium 11 oz sublimation mug: 3.75 in H × 3.25 in Dweblisting verify
James R. SenftAn Introduction to Low Temperature Differential Stirling EnginesbookMoriya Press verify
WikipediaStirling enginewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mug-ltd-chamber-ring-76-h23chamber ring Ø76 bore × 23, Ø90 outside (7 wall), 5 × Ø3.4 (M3 clearance) on R41, 2 × M3 tapped (Ø2.5) 2 deep in the top face at (35.5, ±20.5) for the crank pedestalSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=chamber-ring-76

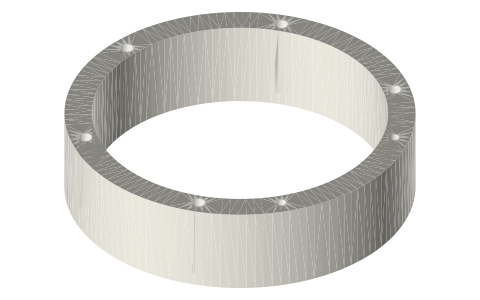

Chamber ring Ø76 × 23, isometric render of a generated part
Render of mug-ltd-chamber-ring-76-h23 from the free STEP; not to scale.

Fits with

Questions

What chamber height suits a 6 mm displacer with a 15 mm stroke?

23 mm: 17 free, 1 mm left at each end.
