Coil bobbin Ø10 core × 8 mm, Ø13 flanges

What size coil bobbin for a small axial flux generator? · Hardware · basis: Bobbin sized to the stator pocket: Ø13 flanges, Ø10 core, 8 long, wire slot in one flange

Also called: coil bobbin stl, small coil former, bobbin 13mm, generator coil bobbin, axial flux coil

Used in Long Earth Society builds. Generating electricity with any solenoid

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • The bobbin has a hollow Ø10 core (0.5 mm wall) 8 mm long, closed by two Ø13 × 0.8 mm flanges.
  • A 1.2 mm slot across one flange lets the start of the winding out.
  • The winding window is 1.5 mm deep (Ø10 to Ø13) and 6.4 mm long between the flanges.

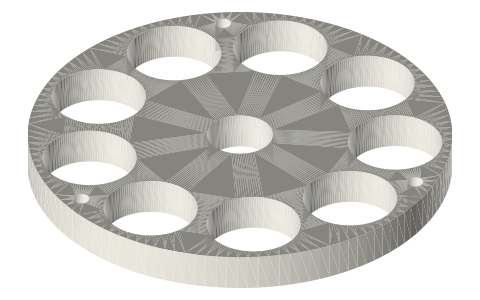

  • The Ø13 flanges slide into the Ø13 pockets of the axial-flux stator.

Coil bobbin Ø10 core × 8 mm, Ø13 flanges size chart

featuresize (mm)
coreØ10 × 8 (Ø9 hollow)
flangesØ13 × 0.8
winding window1.5 deep × 6.4 long
wire slot1.2 wide

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
bobbin flangesØ20stator coil pocket Ø20slidecoil-bobbin-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaAxial flux motorwebCC BY-SA 4.0 (text)
WikipediaAlternatorwebCC BY-SA 4.0 (text)
Hugh PiggottA Wind Turbine Recipe Book (axial-flux alternator design)web, PDFAuthor's site verify
Long Earth SocietyEngine and rig buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
coil-bobbin-10x8coil bobbin Ø10 core (Ø7 bore) × 8 long = the stator thickness, Ø20 × 0.8 flanges, winding window 5 radial × 6.4 axial (32 mm²), 1.2 mm lead slot in one flangeSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=coil-bobbin

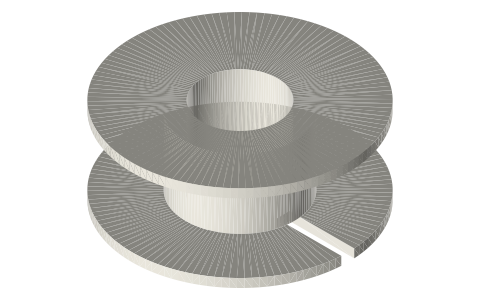

Coil bobbin Ø10 core × 8 mm, Ø13 flanges, isometric render of a generated part
Render of coil-bobbin-10x8 from the free STEP; not to scale.

Questions

What is the winding space on the bobbin?

1.5 mm radially (Ø10 core to Ø13 flange) by 6.4 mm between the flanges.

Does the bobbin fit the stator?

Yes: its Ø13 flanges match the Ø13 coil pockets (slide, see Mating features).
