Cone-clutch sliding cone Ø40, 12.5°, with Ø32 × 4 fork groove, keyed Ø8 bore

What is the sliding cone of a cone clutch? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: clutch cone, male cone, cono deslizante, Kupplungskegel

Exact dimensions. True size, with no tolerance added.

length
40.0 mm
width
40.0 mm
height
30.0 mm

Notes

  • Male cone matching the cup (12.5°, Ø40 → Ø32.91 over 16 mm) with a 4 mm groove for the shifting fork; its Ø8 bore has a 2 × 1 keyway so it slides on a feather key and turns with its shaft.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Cone-clutch sliding cone Ø40, 12.5°, with Ø32 × 4 fork groove, keyed… size chart

dimensionvalue
cone12.5°, Ø40 → Ø32.91, 16 long
fork grooveØ28 root, 4 wide
boreØ8, keyway 2 × 1

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 47: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cone-clutch-cone-d40-12-5deg-keyed8as drawn in the mechanism's own frameSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cone-clutch-cone-d40-12-5deg-keyed8

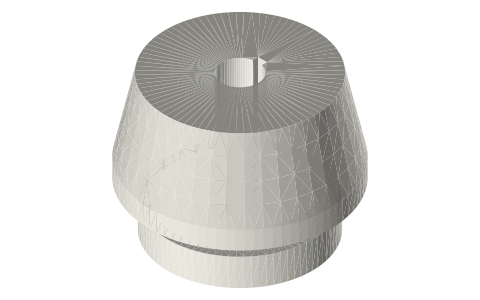

Cone-clutch sliding cone Ø40, 12.5°, with Ø32 × 4 fork groove, keyed Ø8 bore, isometric render of a generated part
Render of cone-clutch-cone-d40-12-5deg-keyed8 from the free STEP; not to scale.

Fits with

Questions

What is the sliding cone of a cone clutch?

Male cone matching the cup (12.5°, Ø40 → Ø32.91 over 16 mm) with a 4 mm groove for the shifting fork; its Ø8 bore has a 2 × 1 keyway so it slides on a feather key and turns with its shaft.
