Cone-clutch cup Ø50, 12.5° internal cone (Ø40 → Ø32.9 over 16 mm), Ø8 bore

What is the cup of a cone clutch? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: cone clutch, friction cup, copa de embrague cónico, Kegelkupplung (Außenkegel)

Exact dimensions. True size, with no tolerance added.

length
50.0 mm
width
50.0 mm
height
22.0 mm

Notes

  • Ø50 cup fixed on the driving shaft with an internal cone of 12.5° half-angle, Ø40 at the mouth narrowing to Ø32.91 over 16 mm; the sliding cone wedges into it and drives by friction.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Cone-clutch cup Ø50, 12.5° internal cone (Ø40 → Ø32.9 over 16 mm)… size chart

dimensionvalue
outsideØ50 × 22
cone12.5° half-angle, Ø40 → Ø32.91, 16 deep
boreØ8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 47: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cone-clutch-cup-d50-12-5deg-bore8as drawn in the mechanism's own frameSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=cone-clutch-cup-d50-12-5deg-bore8

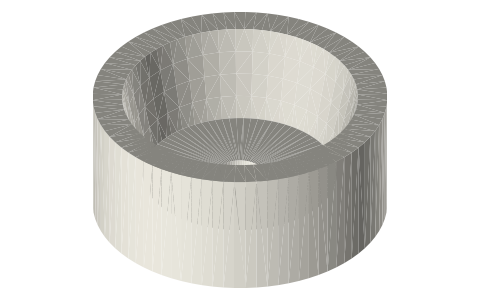

Cone-clutch cup Ø50, 12.5° internal cone (Ø40 → Ø32.9 over 16 mm), Ø8 bore, isometric render of a generated part
Render of cone-clutch-cup-d50-12-5deg-bore8 from the free STEP; not to scale.

Fits with

Questions

What is the cup of a cone clutch?

Ø50 cup fixed on the driving shaft with an internal cone of 12.5° half-angle, Ø40 at the mouth narrowing to Ø32.91 over 16 mm; the sliding cone wedges into it and drives by friction.
