716 coreless motor: Ø7 × 16 mm, Ø0.8 shaft

What are the dimensions of a 716 coreless motor? · Hardware · basis: DFRobot FIT0793 listing (7 × 16 mm coreless micro motor). Envelope only: the outside of the motor at its published sizes. The windings, magnets, brushes and bearings inside are not drawn.

Also called: 716 motor dimensions, 7x16 coreless motor, 716 coreless motor size, 716 motor shaft, 716 motor step

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Envelope only: the outside of the motor at its published sizes. The windings, magnets, brushes and bearings inside are not drawn.
  • The body is a plain Ø7 × 16 mm cylinder; the Ø0.8 shaft stands 5 mm out of the front end.
  • The leads leave the back end; they and any bearing boss are not drawn (not listed).
  • The name is the size: 7 mm diameter, 16 mm long. It is held by its body in a Ø7 clip or socket.
  • Coreless motors have no iron in the rotor, so they turn without cogging; on small, low-power Stirling models they are used as generators or tachometer pickups.

716 coreless motor: Ø7 × 16 mm, Ø0.8 shaft size chart

featuremmfrom
bodyØ7 × 16DFRobot FIT0793
shaftØ0.8 × 5DFRobot FIT0793

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
shaftØ0.8propeller or pinion bore (pressed on)presscoreless-716*
bodyØ7 × 16clip or socketsocketcoreless-716*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

DFRobot (FIT0793, as listed by Core Electronics)Coreless micro motor 7 × 16 mm: Ø7 × 16, shaft Ø0.8 × 5weblisting verify

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
coreless-716716 coreless envelope: Ø7 × 16 body, Ø0.8 shaft 5 longSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=coreless-motor-716

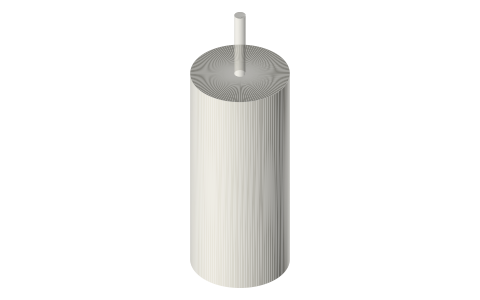

716 coreless motor: Ø7 × 16 mm, Ø0.8 shaft, isometric render of a generated part
Render of coreless-716 from the free STEP; not to scale.

You might also need

Questions

What size is a 716 motor?

Ø7 mm × 16 mm body with a Ø0.8 mm shaft 5 mm long.

How is a 716 coreless motor mounted?

By its body: a Ø7 socket or clip around the can.
