Crossed belt drive (driven pulley reversed), 2 : 1

Why does a crossed belt reverse the driven pulley? · Hardware · basis: Xem Studio design following Brown No. 2 (1868)

Also called: crossed belt, cross belt drive, reverse belt drive, transmisión por correa cruzada, gekreuzter Riementrieb

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pulleys, centres; stays the same: ratio, wrap (both); step to the nearest standard size (and redraw the hole or pocket it fits): belt.
  • Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Crossing the belt between two pulleys makes the driven pulley turn the opposite way to the driver; the ratio is still D₂/D₁ (80/40 = 2 : 1).
  • Both pulleys get the same wrap, π + 2·asin((R₁ + R₂)/C) = 224.05° here, more than an open belt gives the small pulley, so a crossed belt grips better; the strands rub where they cross, so it suits slow, narrow belts.
  • Drawn on the catalog flanged pulleys Ø40 and Ø80 (16 mm faces) at 160 mm centres with a 12 × 1.5 belt, inside length 531.27 mm. Brown's No. 2.

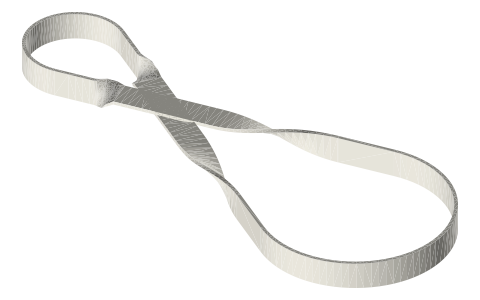

  • Parts (each has its own page): flanged-flat-pulley-40, flanged-flat-pulley-80, crossed-flat-belt-12x1-5-pulleys-40-80-c160.
  • Brown's movement No. 2 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Crossed belt drive (driven pulley reversed), 2 : 1 size chart

parametervalue
pulleysØ40 and Ø80, flanged
centres160 mm
ratio2 : 1, reversed
wrap (both)224.05°
belt12 × 1.5, 531.27 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 2: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crossed-belt-drive-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=crossed-belt-drive-mechanism

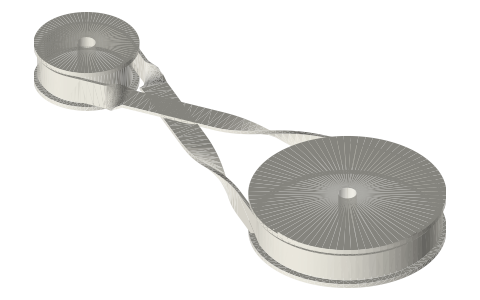

Crossed belt drive (driven pulley reversed), 2 : 1, isometric render of a generated part
Render of crossed-belt-drive-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

Why does a crossed belt reverse the driven pulley?

Crossing the belt between two pulleys makes the driven pulley turn the opposite way to the driver; the ratio is still D₂/D₁ (80/40 = 2 : 1).

How long is a crossed belt?

2√(C² − (R₁ + R₂)²) + (R₁ + R₂)(π + 2 asin((R₁ + R₂)/C)); it depends only on R₁ + R₂, so stepped pulleys with a constant diameter sum keep it tight.
