Dado and rabbet joint (tongue and dado corner)

What is a dado and rabbet joint? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions

Also called: dado rabbet joint, tongue and dado, rabbet and dado, rebate and housing, ranura y rebajo, Nut und Falz Ecke

Exact dimensions. True size, with no tolerance added.

length
90.0 mm
width
80.0 mm
height
100.0 mm

Notes

  • Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
  • A rabbeted tongue on one board in a dado in the other: stronger and better located than a plain rabbet — cabinets and drawer backs.

Dado and rabbet joint size chart

dimensionvalue
stock15 mm side, 10 mm top, 80 mm deep
partsside, top
dado5 mm wide, 5 mm deep
tongue5 × 5 mm on the top's end
assemblesthe top's tongue drops into the dado
holdsthe corner square; locks the top against sliding out sideways

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudioJoinery design (geometry computed in the generator from traditional proportions)webXem Studio design

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
dado-rabbet-joint-sideSide with a 5 × 5 mm dado 10 mm below its topSTEP · STL
dado-rabbet-joint-topTop with a rabbet leaving a 5 mm tongueSTEP · STL
dado-rabbet-joint-assembledAll parts in their assembled position (each part its own solid)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dado-rabbet-joint

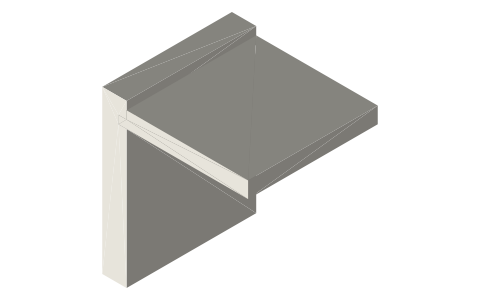

Dado and rabbet joint (tongue and dado corner), isometric render of a generated part
Render of dado-rabbet-joint-assembled from the free STEP; not to scale.

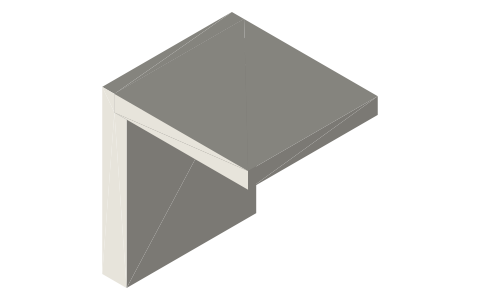

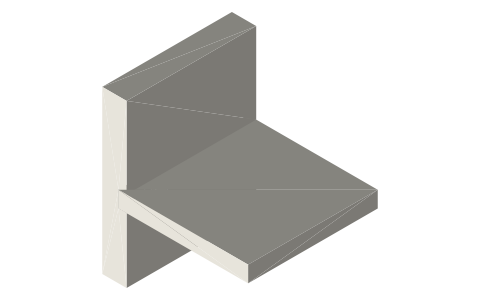

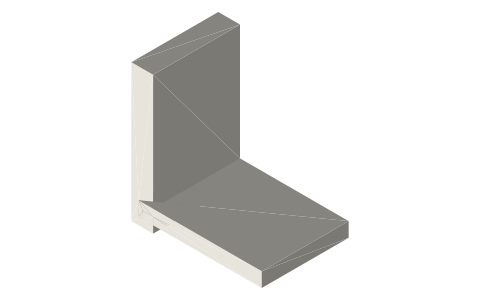

Fits with

Questions

Why combine a dado and a rabbet?

The tongue locates the corner and the dado stops it sliding.
