Double-pawl lever: fulcrum, two pawl pivots and an 80 mm handle

What is a double-pawl lever? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: double pawl lever, two pawl lever, palanca de dos trinquetes, Doppelklinkenhebel

Exact dimensions. True size, with no tolerance added.

length
97.0 mm
width
47.0 mm
height
5.0 mm

Notes

  • 5 mm plate pivoted on a Ø3 fulcrum pin with two Ø3 pawl pivots, one 23.32 mm out above the fulcrum and one 20.81 mm out below it, and an 80 mm handle: rocking it drives the ratchet with one pawl on the up stroke and the other on the down stroke.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Double-pawl lever: fulcrum, two pawl pivots and an 80 mm handle size chart

dimensionvalue
fulcrumØ3
pawl pivots2 × Ø3
handle80 mm
thickness5 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 206: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
double-pawl-leverlever in the wheel's frame (wheel axis at the origin), z 6..11STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=double-pawl-lever-fulcrum-handle-80

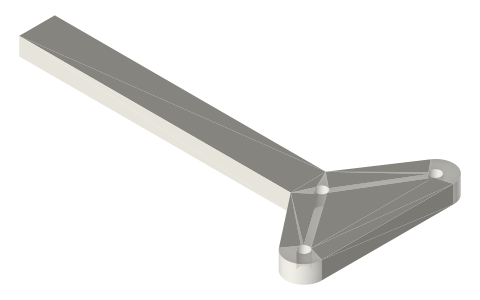

Double-pawl lever: fulcrum, two pawl pivots and an 80 mm handle, isometric render of a generated part
Render of double-pawl-lever from the free STEP; not to scale.

Fits with

Questions

What is a double-pawl lever?

5 mm plate pivoted on a Ø3 fulcrum pin with two Ø3 pawl pivots, one 23.32 mm out above the fulcrum and one 20.81 mm out below it, and an 80 mm handle: rocking it drives the ratchet with one pawl on the up stroke and the other on the down stroke.
