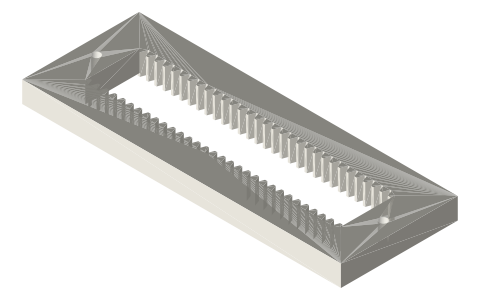

Double rack frame, module 1, racks 20 mm apart (120 × 44)
What is a double rack frame? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: double rack, rack frame, reciprocating rack, bastidor de doble cremallera, Doppelzahnstangenrahmen
Exact dimensions. True size, with no tolerance added.
- length
- 120.0 mm
- width
- 44.0 mm
- height
- 8.0 mm
Notes

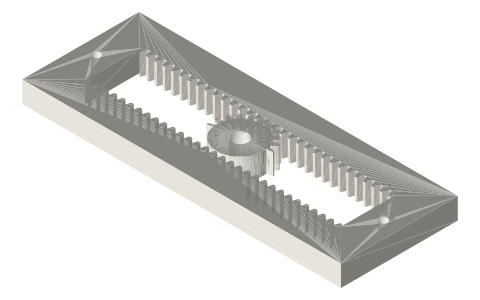

- 120 × 44 × 8 frame with two facing module 1 racks whose pitch lines are 20 mm apart (one pitch diameter of a 20-tooth pinion), teeth in phase; a half-toothed pinion between them drives the frame one way on the upper rack and back on the lower.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Double rack frame, module 1, racks 20 mm apart size chart
| dimension | value |
|---|---|
| frame | 120 × 44 × 8 mm |
| racks | module 1, 96 mm, pitch lines 20 mm apart |
| end holes | 2 × Ø3 for guide rods/pins |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 114: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=double-rack-frame-120

Fits with
Questions
What is a double rack frame?
120 × 44 × 8 frame with two facing module 1 racks whose pitch lines are 20 mm apart (one pitch diameter of a 20-tooth pinion), teeth in phase; a half-toothed pinion between them drives the frame one way on the upper rack and back on the lower.
