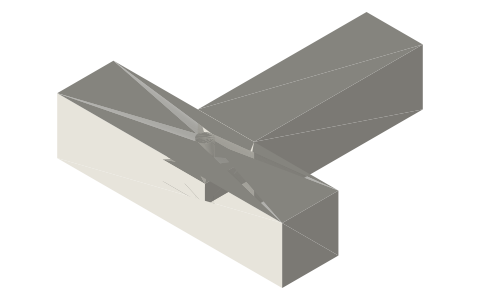

Drawbore mortise and tenon joint
How far is a drawbore hole offset? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: drawbore, drawbore joint, draw bore mortise and tenon, drawbore offset, espiga con clavija desplazada, Zapfen mit versetztem Holznagel
Exact dimensions. True size, with no tolerance added.
- length
- 80.0 mm
- width
- 80.0 mm
- height
- 20.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- The tenon's hole is offset toward the shoulder, so driving the peg pulls the joint tight — no clamps or glue.
- The peg overlaps the tenon by the 1 mm drawbore offset on purpose: that overlap is what pulls the joint tight.
Drawbore mortise and tenon joint size chart
| dimension | value |
|---|---|
| stock | 20 × 20 mm square |
| parts | stile, rail, peg |
| tenon | 15 × 6.67 mm, 15 mm long |
| peg | Ø5 mm |
| offset | 1 mm: the tenon's hole is nearer the shoulder |
| assembles | tenon in, peg driven through: it bends and pulls the shoulder tight |
| holds | pull-out, and keeps the shoulder closed |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Joinery design (geometry computed in the generator from traditional proportions) | web | Xem Studio design |
Free files
★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| drawbore-mortise-and-tenon-joint-stile | Mortised member: peg hole through both cheeks | STEP · STL |
| drawbore-mortise-and-tenon-joint-rail | Tenon: peg hole offset 1 mm toward the shoulder | STEP · STL |
| drawbore-mortise-and-tenon-joint-peg | Ø5 mm peg, in the stile's hole | STEP · STL |
| drawbore-mortise-and-tenon-joint-assembled | All parts in their assembled position (each part its own solid) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=drawbore-mortise-and-tenon-joint

Fits with
Questions
How much offset for a drawbore?
1 mm here for a Ø5 peg in 20 mm stock; about 1/16 in is usual in furniture.
