Eccentric spur gear, module 1, 40 T, Ø5 bore 5 mm off centre, Ø3 centre stud hole

What is an eccentric gear? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: eccentric gear, off centre gear, eccentric spur gear, engranaje excéntrico, Exzenterzahnrad

Exact dimensions. True size, with no tolerance added.

length
41.99 mm
width
41.99 mm
height
8.0 mm

Notes

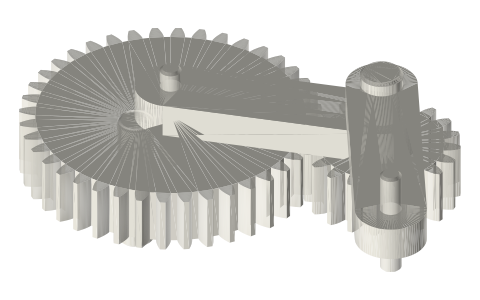

  • Ordinary module 1, 40-tooth involute gear (pitch Ø40, face 8) whose Ø5 shaft bore is 5 mm off its geometric centre, with a Ø3 hole at the true centre for the stud that keeps the link to the pinion. On its shaft it turns at constant speed while its pitch circle wobbles ±5 mm.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Eccentric spur gear, module 1, 40 T, Ø5 bore 5 mm off centre, Ø3… size chart

dimensionvalue
module1
teeth40
boreØ5 at 5 mm from centre
centre holeØ3
face8 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 222: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
eccentric-spur-gear-m1-40t-e5gear centred on the origin, bore at (−5, 0), a tooth on +X, z 0..8STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=eccentric-spur-gear-m1-40t-e5-b5

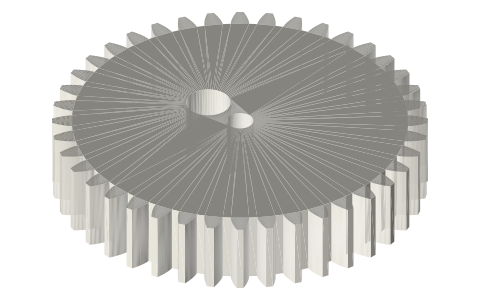

Eccentric spur gear, module 1, 40 T, Ø5 bore 5 mm off centre, Ø3 centre stud hole, isometric render of a generated part
Render of eccentric-spur-gear-m1-40t-e5 from the free STEP; not to scale.

Fits with

Questions

What is an eccentric gear?

Ordinary module 1, 40-tooth involute gear (pitch Ø40, face 8) whose Ø5 shaft bore is 5 mm off its geometric centre, with a Ø3 hole at the true centre for the stud that keeps the link to the pinion. On its shaft it turns at constant speed while its pitch circle wobbles ±5 mm.
