Flat belt 16 × 1.5 for a Ø40 / Ø80 drive at 140 mm with a Ø30 jockey pulley (loop drawn)

How much longer is a belt run over a jockey pulley? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: flat belt, belt with idler, correa plana, Flachriemen

Exact dimensions. True size, with no tolerance added.

length
203.0 mm
width
83.0 mm
height
16.0 mm

Notes

  • 16 × 1.5 mm belt on Ø40 and Ø80 pulleys 140 mm apart, its slack (upper) strand pressed 8 mm in by a Ø30 jockey pulley on its back: inside length 472.33 mm, 0.98 mm more than the plain open belt (471.36 mm) — the slack the jockey takes up.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Flat belt 16 × 1.5 for a Ø40 / Ø80 drive at 140 mm with a Ø30 jockey… size chart

dimensionvalue
width × thickness16 × 1.5 mm
inside length472.33 mm
open-belt length471.36 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 5: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
flat-belt-16x1-5-jockey-drive-40-80-c140belt loop, z 2..18STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=flat-belt-16x1-5-jockey-drive-40-80-c140

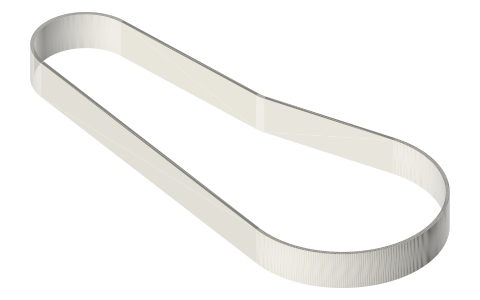

Flat belt 16 × 1.5 for a Ø40 / Ø80 drive at 140 mm with a Ø30 jockey pulley (loop drawn), isometric render of a generated part
Render of flat-belt-16x1-5-jockey-drive-40-80-c140 from the free STEP; not to scale.

Fits with

Questions

How much longer is a belt run over a jockey pulley?

16 × 1.5 mm belt on Ø40 and Ø80 pulleys 140 mm apart, its slack (upper) strand pressed 8 mm in by a Ø30 jockey pulley on its back: inside length 472.33 mm, 0.98 mm more than the plain open belt (471.36 mm) — the slack the jockey takes up.
