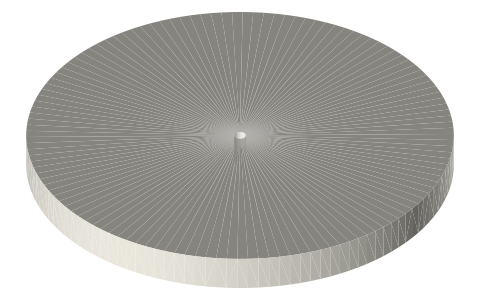

Flat disc Ø72 × 6 with a Ø2 rod bore
What thin disc fits a 76 mm chamber on a 2 mm rod? · Hardware · basis: 2 mm radial gap to the Ø76 chamber like the LTD kit; swept volume at 15 mm stroke 61.1 mL
Also called: ltd stirling displacer size small, mug stirling displacer
Long Earth Society build part. Displacer of the mug LTD. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 4 in table
Notes
- Ø72 × 6 with a Ø2 bore for the rod (pressed through, flush at the bottom). Swept volume 61.1 mL against the 5 mL glass piston's 1.87 mL: ratio 33.
- 2 mm radial gap to the chamber wall (designed); 1 mm end gaps at the ends of travel.
Flat disc Ø72 × 6 with a Ø2 rod bore size chart
| feature | value |
|---|---|
| displacer | Ø72 × 6 |
| stroke | 15 |
| swept volume | 61.1 mL |
| volume ratio | 33 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| rod bore | Ø2 | Ø2 displacer rod | press | all |
| outside | Ø72 in a Ø76 bore | chamber ring (2 radial gap) | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Atlanta Vinyl Store | Premium 11 oz sublimation mug: 3.75 in H × 3.25 in D | web | listing verify |
| James R. Senft | An Introduction to Low Temperature Differential Stirling Engines | book | Moriya Press verify |
| Wikipedia | Stirling engine | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| mug-ltd-displacer-72x6 | displacer Ø72 × 6, Ø2 rod bore (2 mm radial gap to the Ø76 chamber: designed; 1 mm end gaps at the ends of its 15 mm stroke) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=flat-disc-72-rod-bore

Fits with
Questions
What is the displacer to piston volume ratio of the mug LTD?
About 33: 61.1 mL displacer sweep to 1.87 mL of 5 mL glass syringe, both at 15 mm stroke.
