Flywheel crank: Ø100 nut-pocket flywheel with a 7.5 mm crank pin (15 mm stroke)

Can a flywheel carry the crank pin? · Hardware · basis: The Ø100 M8 nut-pocket flywheel (tools/gen_shafts_flywheels.py) with one added Ø3 pin hole through the hub at 7.5 from the axis

Also called: flywheel crank pin, flywheel with crank stirling

Long Earth Society build part. Flywheel and crank in one for the mug LTD and the test-tube marble engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • Same wheel as flywheel-100-m8-b3 (12 M8 pockets at R40.5, Ø3 hub with M3 grub), plus a Ø3 hole through the hub at 7.5 from the axis, 90° from the grub, for a dowel-3x16 crank pin (10 in the hub, through a 5 mm con-rod, 1 proud). Overhung at a shaft end with the hub toward the con-rod: on the mug LTD it is the displacer crank (the web on the far side, so the displacer clevis passes under the rim); on the test-tube marble engine it drives the rocking link.
  • Six M8 nuts in alternate pockets to start.

Flywheel crank: Ø100 nut-pocket flywheel with a 7.5 mm crank pin size chart

featurevalue (mm)
diameter100
crank throw7.5
pin holeØ3 through the 12.3 hub
boreØ3

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
hub boreØ3Ø3 shaft (crankshaft or dowel-3x30)slideall
crank-pin holeØ3, 7.5 from the axisdowel-3x16 crank pinpressall
grub holeØ2.5 (M3 tapped)set-m3x8designedall
nut pockets12 × M8 hex, one flat outwardM8 hex nut (flywheel weight)pressall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
flywheel-crank-100-m8-b3-s15Ø100 flywheel with 12 M8 nut pockets (the nut-pocket flywheel's geometry, Ø3 hub, M3 grub) and a Ø3 crank-pin hole through the hub 7.5 from the axis (15 mm stroke), 90° from the grubSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=flywheel-crank

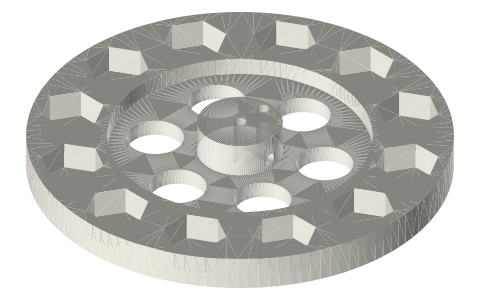

Flywheel crank: Ø100 nut-pocket flywheel with a 7.5 mm crank pin (15 mm stroke), isometric render of a generated part
