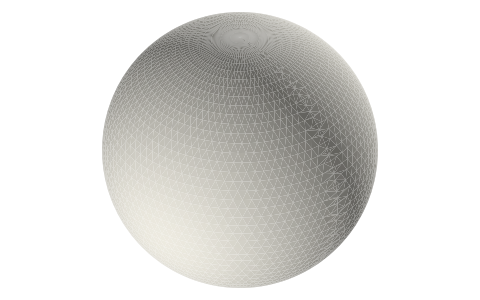

Glass marbles 1/2 in, 5/8 in and Ø16 mm
What is the diameter of a standard marble? · Standard part · basis: Marbles are sized by diameter in 1/16 in steps, usually 1/2 to 3/4 in (marblecollecting.com); files are spheres at 1/2 in (Ø12.70), 5/8 in (Ø15.875) and Ø16.0
Also called: marble diameter, marble size mm, shooter marble size, 16mm marble, marble stl, 5/8 inch marble mm, 1/2 inch marble, marble stirling engine
Long Earth Society build part. Frames, crank wire and guides for the no-budget can engine. Long Earth Society
Exact dimensions. True size, with no tolerance added.
- sizes
- 3 in table
Notes
- Glass marbles are sized by diameter in 1/16 in steps and are usually 1/2 to 3/4 in. The files are spheres at 1/2 in (Ø12.70), 5/8 in (Ø15.875) and the metric Ø16.0.
- Tournament rules put shooters between 5/8 and 3/4 in.
- In the test-tube marble engine, four 5/8 in marbles roll inside a 25 × 150 tube (Ø22.6 bore) as the displacer; one marble fits across the bore, so they roll in single file.
- Marbles vary from piece to piece by a few tenths of a millimetre; measure the one you have before you draw anything around it.
Glass marbles 1/2 in, 5/8 in and Ø16 mm size chart
| marble | dia (in) | dia (mm) |
|---|---|---|
| 1/2 in | 1/2 | 12.7 |
| 5/8 in | 5/8 | 15.875 |
| 16 mm | None | 16.0 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Craft stick | web | CC BY-SA 4.0 (text) |
| Wikipedia | BB gun | web | CC BY-SA 4.0 (text) |
| Wikipedia | Table tennis | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds (videos and write-ups) | web, video | LES site |
Free files
★ Free files 3 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| marble-16mm | glass marble Ø16 (15.9); shooter Ø25 | STEP · STL |
| marble-5-8in | glass marble 5/8 in (Ø15.875), the common size | STEP · STL |
| marble-1-2in | glass marble 1/2 in (Ø12.70) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=glass-marbles

How it fits
Goes in or on
Alternatives
You might also need
Questions
What is the diameter of a marble?
Marbles come in 1/16 in steps, usually 1/2 to 3/4 in; the common size is 5/8 in (15.875 mm, often sold as 16 mm).
Are marbles all the same size?
No; they are sized by the smallest sieve opening they pass, and individual marbles vary by a few tenths of a millimetre.
What marbles go in a test-tube marble engine?
5/8 in (Ø15.875) in a 25 × 150 tube (Ø22.6 bore): they roll in single file from end to end as the tube rocks.
