Golf ball size: Ø42.67 mm minimum, 45.93 g maximum (R&A / USGA)

What is the diameter of a golf ball? · Standard part · basis: R&A Rules of Equipment Part 4 (same limits in the USGA rules)

Also called: golf ball diameter, golf ball dimensions, golf ball size mm, medidas pelota de golf, medidas bola de golfe, Golfball Durchmesser, diamètre balle de golf

Exact dimensions. True size, with no tolerance added.

length
42.67 mm
width
42.67 mm
height
42.67 mm

Notes

  • Diameter not less than 1.680 in (42.67 mm); weight not more than 1.620 oz (45.93 g).
  • Dimples are not modelled: holders, tees and displays need only the envelope; give 0.5 mm clearance.

Golf ball size: Ø42.67 mm minimum, 45.93 g maximum size chart

limitinch / ozmm / g
minimum diameter1.680 in42.67
maximum weight1.620 oz45.93

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

R&ARules of Equipment, Part 4: conformance of ballswebPublisher's page; dimensions are facts
USGAEquipment rules: ballswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
golf-ball-42.67Golf ball envelope: Ø42.67 mm sphere (minimum legal diameter)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=golf-ball

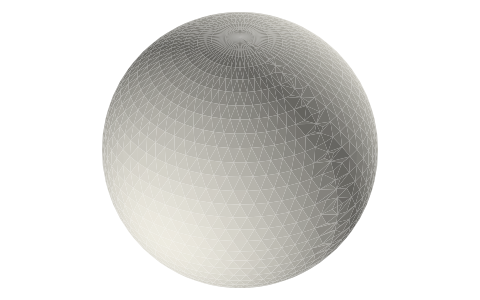

Golf ball size: Ø42.67 mm minimum, 45.93 g maximum (R&A / USGA), isometric render of a generated part
Render of golf-ball-42.67 from the free STEP; not to scale.

Fits with

Questions

How big is a golf ball?

At least 42.67 mm (1.68 in) across.
