Half-blind dovetail joint (lapped dovetail)

What is a half-blind dovetail? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions

Also called: half blind dovetail, lapped dovetail, drawer dovetail, half-blind dovetail dimensions, cola de milano oculta, halbverdeckte Zinken

Exact dimensions. True size, with no tolerance added.

length
95.0 mm
width
60.0 mm
height
90.0 mm

Notes

  • Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
  • Like a through dovetail, but the tails stop short of the front face, so the joint shows only from the side.

Half-blind dovetail joint size chart

dimensionvalue
stock10 mm side, 15 mm front, 60 mm wide
partsside, front
tails3, 1:6
lap5 mm (tails hidden from the front)
assemblesthe side drops onto the front
holdspulling the front off — the drawer-front joint

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudioJoinery design (geometry computed in the generator from traditional proportions)webXem Studio design

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
half-blind-dovetail-joint-sideTail board (drawer side)STEP · STL
half-blind-dovetail-joint-frontPin board (drawer front), 15 mm thick with a 5 mm lap hiding the tailsSTEP · STL
half-blind-dovetail-joint-assembledAll parts in their assembled position (each part its own solid)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=half-blind-dovetail-joint

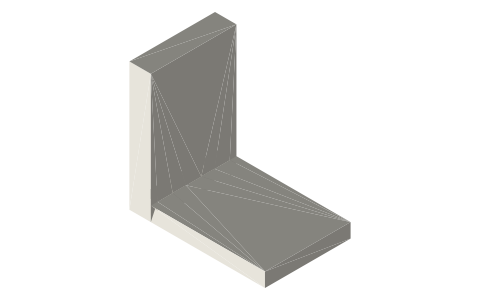

Half-blind dovetail joint (lapped dovetail), isometric render of a generated part
