Hanging weight Ø40 × 40 with a pin lug (394.58 g in steel)

What is this weight for? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: hanging weight, dead weight, counterweight, pesa colgante, Hängegewicht

Exact dimensions. True size, with no tolerance added.

length
40.0 mm
width
40.0 mm
height
52.0 mm

Notes

  • Ø40 × 40 mm cylinder with a 10 × 5 × 12 lug on top and a Ø3 cross hole 7 mm above the top face: hangs from a Ø3 pin (rope eye, block or slide). 394.58 g in steel (7.85 g/cm³), 136.13 g in aluminium.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Hanging weight Ø40 × 40 with a pin lug size chart

dimensionvalue
bodyØ40 × 40 mm
lug10 × 5 × 12, Ø3 hole
mass (steel)394.58 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 23: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
hanging-weight-d40x40-lugweight, axis Z, lug on top, hole along YSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hanging-weight-d40x40-lug

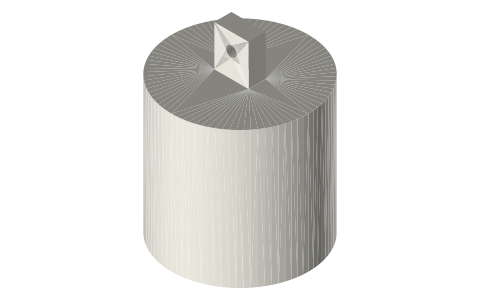

Hanging weight Ø40 × 40 with a pin lug (394.58 g in steel), isometric render of a generated part
Render of hanging-weight-d40x40-lug from the free STEP; not to scale.

Fits with

Questions

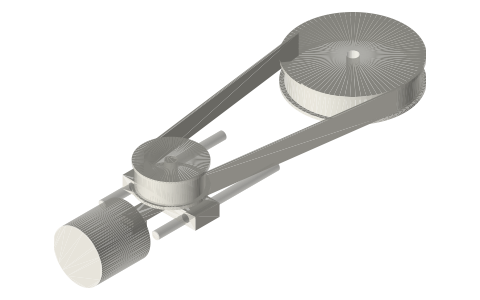

What is this weight for?

Ø40 × 40 mm cylinder with a 10 × 5 × 12 lug on top and a Ø3 cross hole 7 mm above the top face: hangs from a Ø3 pin (rope eye, block or slide). 394.58 g in steel (7.85 g/cm³), 136.13 g in aluminium.
