Heart cam with roller follower (uniform motion)
Why is a heart cam heart-shaped? · Hardware · basis: Xem Studio drawing; classic mechanism (Brown No. 96)
Also called: heart cam, heart shaped cam, uniform motion cam, leva de corazón, came em forma de coração, Herzkurve Nocken, came cardioïde
Exact dimensions. True size, with no tolerance added.
- sizes
- 3 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: base radius r₀, lift h; stays the same: motion.
- Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
- Radius = r₀ + h·θ/180° on the way out and back on the way in: equal angle steps give equal lift steps, so the follower moves at a constant speed (20 mm each way per turn here).
- The cusp at the top and the dip at the bottom are where direction reverses (infinite acceleration in theory): fine for slow traverse, e.g. thread winding.
- A roller follower's pitch curve is the profile offset by the roller radius; this file is the pitch-correct profile for a knife-edge follower — offset by 5 mm for the Ø10 roller.

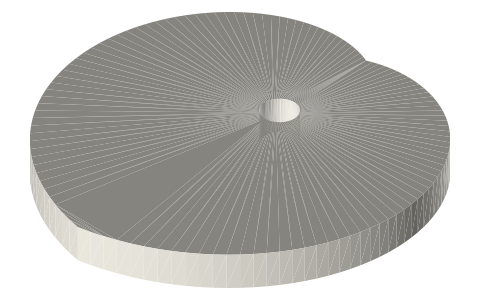

- Parts (each has its own page): heart-cam-r15-h20, roller-follower-10, crosshead-guide-8mm. Brown's movement No. 96 shows it (1868).
Heart cam with roller follower size chart
| parameter | value |
|---|---|
| base radius r₀ | 15 mm |
| lift h | 20 mm |
| motion | uniform velocity |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| heart-cam-mechanism-assembly | Assembled mechanism, all parts placed (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=heart-cam-mechanism

Fits with
Questions
Why is a heart cam heart-shaped?
Radius = r₀ + h·θ/180° on the way out and back on the way in: equal angle steps give equal lift steps, so the follower moves at a constant speed (20 mm each way per turn here).
