End cap for a 2 in hollow piston with an 8 mm rod socket

What cap closes a hollow piston and holds an 8 mm rod? · Hardware · basis: Shell spigot and flange as the displacer cap on this site (2 in shell Ø46 × 1 mm wall); Ø8 rod and M4 grub sizes are design values

Also called: ringbom displacer, ringbom stirling rod, free displacer cap

Long Earth Society build part. The cap that turns my shell displacer into a Ringbom displacer. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • Closes a 2 in shell displacer like the standard cap and holds an Ø8 rod instead of an Ø3 one. The rod is the Ringbom drive: its cross-section (50.3 mm²) times the gas pressure minus air pressure is the force that moves the free displacer.
  • The rod's D-flat end goes in the Ø8 socket, 12 deep, and the M4 grub seats on the flat.

End cap for a 2 in hollow piston with an 8 mm rod socket size chart

partspigot (mm)flange (mm)boss (mm)socket (mm)
ringbom-cap-2in-r8Ø44 × 3Ø46 × 1.5Ø16 × 14Ø8 × 12

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
spigotØ44 × 32 in shell displacer boreslideall
rod socketØ8 × 12Ø8 rod D-flat end (M4 grub)slideall
grub holeØ3.3M4 tap drilldesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ringbom-cap-2in-r8Ringbom displacer cap: Ø44 × 3 spigot into a 2 in shell displacer, Ø46 × 1.5 flange, Ø16 boss to 18.5 with an Ø8 socket 12 deep and an M4 grub (Ø3.3)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hollow-piston-end-cap-8mm-rod

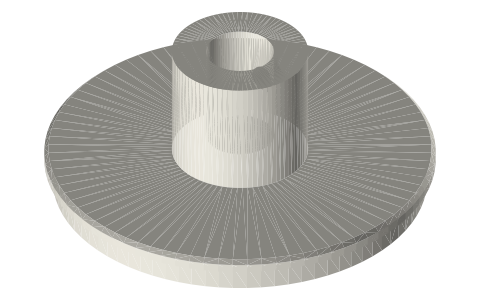

End cap for a 2 in hollow piston with an 8 mm rod socket, isometric render of a generated part
Render of ringbom-cap-2in-r8 from the free STEP; not to scale.

Fits with

Questions

How strong is the Ringbom push?

50.3 mm² × the pressure difference: 0.5 N per 10 kPa, enough to lift about 51 g per 10 kPa.
