Credit card and ID card sizes (ISO/IEC 7810 ID-1: 85.60 × 53.98 × 0.76 mm), SIM cards, business cards

What are the exact dimensions of a credit card? · Standard part · basis: ISO/IEC 7810 ID-1, ID-2, ID-3 and ID-000; ETSI TS 102 221 (micro-SIM) and TS 102 221 / 4FF (nano-SIM); business cards by common practice

Also called: credit card dimensions, credit card size mm, id-1 card size, nano sim size, business card size

Exact dimensions. True size, with no tolerance added.

sizes
8 in table

Notes

  • SIM corners have a chamfer for orientation that is not drawn here; the outline is the card's.

Credit card and ID card sizes (ISO/IEC 7810 ID-1: 85.60 × 53.98 ×… size chart

cardwidth (mm)height (mm)thickness (mm)corner r (mm)
ID-1 (credit card, debit card, driver's licence)85.653.980.763.18
ID-2105.074.00.763.18
ID-3 (passport page)125.088.00.763.18
mini-SIM (2FF, ID-000)25.015.00.76—
micro-SIM (3FF)15.012.00.76—
nano-SIM (4FF)12.38.80.67—
US business card88.8999999999999950.80.35—
European business card85.055.00.35—

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO/IECISO/IEC 7810 Identification cards, physical characteristicsstandardISO/IEC; dimensions are facts verify
ETSIETSI TS 102 221 UICC-terminal interface (SIM form factors)standardETSI; dimensions are facts verify

Free files

★ Free files 8 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
id-1ID-1 (credit card, debit card, driver's licence): 85.6 × 53.98 × 0.76 mm, R3.18 cornersSTEP · STL
id-2ID-2: 105 × 74 × 0.76 mm, R3.18 cornersSTEP · STL
id-3ID-3 (passport page): 125 × 88 × 0.76 mm, R3.18 cornersSTEP · STL
mini-simmini-SIM (2FF, ID-000): 25 × 15 × 0.76 mmSTEP · STL
micro-simmicro-SIM (3FF): 15 × 12 × 0.76 mmSTEP · STL
nano-simnano-SIM (4FF): 12.3 × 8.8 × 0.67 mmSTEP · STL
business-card-usUS business card: 88.9 × 50.8 × 0.35 mmSTEP · STL
business-card-euEuropean business card: 85 × 55 × 0.35 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=id-cards-and-sim-cards

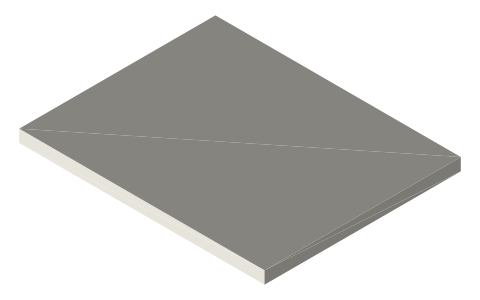

Credit card and ID card sizes (ISO/IEC 7810 ID-1: 85.60 × 53.98 × 0.76 mm), SIM cards, business cards, isometric render of a generated part
Render of micro-sim from the free STEP; not to scale.

Fits with

Questions

Credit card size?

85.60 × 53.98 × 0.76 mm (3.370 × 2.125 in), corners R3.18.
