Library › Mechanisms › Belt and friction drives ·

Jockey (tightener) lever, 51.48 mm centres, Ø6 holes

What is the jockey (tightener) lever? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: tightener lever, jockey arm, idler arm, palanca tensora, Spannhebel

Exact dimensions. True size, with no tolerance added.

length
103.48 mm
width
12.0 mm
height
5.0 mm

Notes

  • 12 × 5 mm flat lever with a Ø6 pivot hole and a Ø6 hole 51.48 mm away, and a 40 mm handle beyond it.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Jockey (tightener) lever, 51.48 mm centres, Ø6 holes size chart

dimensionvalue
centres51.48 mm
holesØ6 / Ø6
section12 × 5 mm
handle40 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 5: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
jockey-lever-bore6lever, pivot at the origin, along +X, z 0..5STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=jockey-lever-bore6

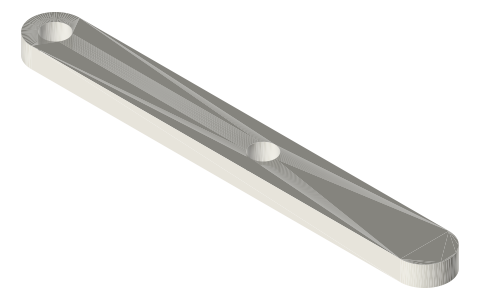

Jockey (tightener) lever, 51.48 mm centres, Ø6 holes, isometric render of a generated part
Render of jockey-lever-bore6 from the free STEP; not to scale.

Fits with

Questions

What is the jockey (tightener) lever?

12 × 5 mm flat lever with a Ø6 pivot hole and a Ø6 hole 51.48 mm away, and a 40 mm handle beyond it.
