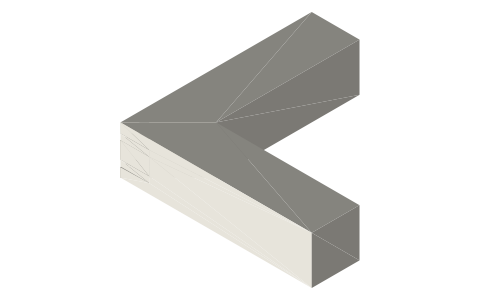

Keyed mitre joint (feather keys)
How do keys reinforce a mitre joint? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: keyed mitre, feather key mitre, mitre keys, miter keys, picture frame keys, inglete con llaves, Gehrung mit Federn
Exact dimensions. True size, with no tolerance added.
- length
- 80.0 mm
- width
- 80.0 mm
- height
- 20.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- Thin keys across the outside corner of a mitre (as on picture frames) lock it and show as stripes.
Keyed mitre joint size chart
| dimension | value |
|---|---|
| stock | 20 × 20 mm square |
| parts | part a, part b, key 1, key 2 |
| mitre | 45° |
| keys | two, 2.5 mm thick, 12 mm legs, across the outside corner |
| assembles | close the mitre, slide the keys into the kerfs |
| holds | the mitre against opening |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Joinery design (geometry computed in the generator from traditional proportions) | web | Xem Studio design |
Free files
★ Free files 5 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| keyed-mitre-joint-part-a | Mitred member A with two key kerfs | STEP · STL |
| keyed-mitre-joint-part-b | Mitred member B with two key kerfs | STEP · STL |
| keyed-mitre-joint-key-1 | Triangular key, 2.5 mm thick | STEP · STL |
| keyed-mitre-joint-key-2 | Triangular key, 2.5 mm thick | STEP · STL |
| keyed-mitre-joint-assembled | All parts in their assembled position (each part its own solid) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=keyed-mitre-joint

Fits with
Questions
Where do mitre keys go?
Across the outside corner, square to the frame face, one or two per corner.
