Pawl for the 24-tooth Ø40 ratchet, pivot to nose 30.89 mm

What pawls does the double-pawl lever carry? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: ratchet pawl, click, trinquete, Schaltklinke

Exact dimensions. True size, with no tolerance added.

length
34.89 mm
width
8.0 mm
height
6.0 mm

Notes

  • 6 mm pawl with a Ø8 boss on a Ø3 pivot and a nose whose end face lies on the steep face of a ratchet tooth over 80 % of its depth (face contact). Pivot to nose 30.89 mm; one of the two pawls of the double-pawl lever (pivots at (12, 20) and (12, -17) from the fulcrum).
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Pawl for the 24-tooth Ø40 ratchet, pivot to nose 30.89 mm size chart

dimensionvalue
thickness6 mm
pivotØ3
pivot to nose30.89 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 206: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
lever-pawl-24t-d40-upperpawl, pivot at origin, nose on +X, z 0..6STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=lever-pawl-24t-d40-upper

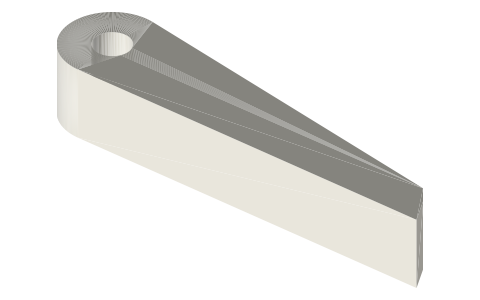

Pawl for the 24-tooth Ø40 ratchet, pivot to nose 30.89 mm, isometric render of a generated part
Render of lever-pawl-24t-d40-upper from the free STEP; not to scale.

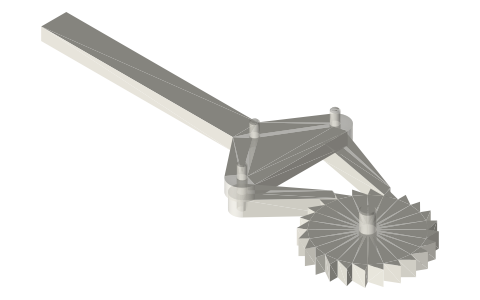

Fits with

Questions

What pawls does the double-pawl lever carry?

6 mm pawl with a Ø8 boss on a Ø3 pivot and a nose whose end face lies on the steep face of a ratchet tooth over 80 % of its depth (face contact). Pivot to nose 30.89 mm; one of the two pawls of the double-pawl lever (pivots at (12, 20) and (12, -17) from the fulcrum).
