MacBook Neo

What are the exact dimensions of the MacBook Neo? · Modern device · basis: Apple accessory dimensional drawing (developer.apple.com/accessories); numbers transcribed, geometry built by Xem Studio

Also called: MacBook Neo dimensions, MacBook Neo size, MacBook Neo dimensional drawing

Exact dimensions. True size, with no tolerance added.

length
206.39 mm
width
297.55 mm
height
12.75 mm

Notes

  • From Apple's published dimensional drawing for MacBook Neo: 297.55 × 206.39 × 12.75 mm. The body file is built from the drawing's own numbers (corner-profile points, edge profile, camera and port positions): hollow it for a case, or subtract it (plus the case-cutouts file) to make a pocket, dock, tray or mount.
  • Apple's notes for case makers: case thickness on the back 2.1 mm max; do not obstruct ports, cameras, flash or sensors; no metal contact; no magnets on the back except MagSafe.
  • Sizes are exact nominal millimetres, true size: add your own clearance (for a printed case, typically a few tenths of a mm all round).
  • From Apple's dimensional drawing for MacBook Neo: the numbers below are as printed (Apple's drawing is linked, not copied). No body file: the drawing does not dimension the outline fully enough to build a true shape without guessing.
  • Apple's notes for accessory makers: 1. NO METAL CONTACT WITH PRODUCT; 2. DO NOT OBSTRUCT PORTS; 3. DO NOT TOUCH GLASS; 4. DO NOT OBSTRUCT ANTENNA APERTURE

MacBook Neo size chart

parametervalue
width × length × thickness297.55 × 206.39 × 12.75 mm
overall (as printed)297.55 (TOP VIEW, width)
overall (as printed)206.39 (TOP VIEW, depth)
overall (as printed)12.75 W/O FEET
overall (as printed)14.70 W/ FEET
overall (as printed)1.50 (RIGHT VIEW, top: lid/feet-related step)
overall (as printed)0.56 DISPLAY TO BASE GAP
corner profile points (x from side, y from top)(0, 16.98); (0, 14.97); (0.1, 12.95); (0.32, 10.95); (0.77, 8.98); (1.5, 7.11); (2.53, 5.37); (3.84, 3.84); (5.43, 2.53); (7.11, 1.5); (8.98, 0.78); (10.95, 0.32); (12.95, 0.1); (14.97, 0.02); (16.98, 0)
USB-C connector keep-out12.38 × 6.6 mm, centred [65.26, 80.13] mm from the left edge
feetØ26.74, centres 21.01 / 21.01 from the corner edges (4 feet shown)
hingeHINGE ROTATION AXIS 2.94 in from the rear edge, 7.95 below top; DISPLAY REAR EDGE 10.01
mic ports, antenna aperture (note 4)none printed
speaker port (left view)none printed

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

AppleMacBook Neo dimensional drawing (Accessory Design Guidelines)PDFApple's terms; linked, not hosted

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
macbook-neo-bodyMacBook Neo at true size: outline from Apple's corner-profile points, side profile, camera Sides drawn straight: the drawing does not dimension the edge profile.STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=macbook-neo

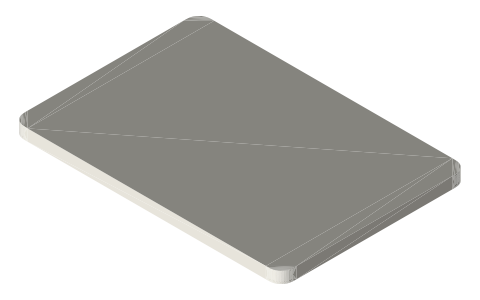

MacBook Neo, isometric render of a generated part
