Mason jar flat lids: regular Ø70.00 and wide-mouth Ø86.00

What is the diameter of a mason jar lid? · Standard part · basis: Regular 70 mm (2 3/4 in) and wide-mouth 86 mm (3 3/8 in) flat lids; 0.154 mm tinplate (GPI 450 metal closure spec, 0.00605 in minimum nominal)

Also called: mason jar lid diameter, regular mouth lid size mm, wide mouth lid diameter, ball jar lid size mm, mason jar size chart, mason jar lid size, wide mouth mason jar diameter, frasco mason medidas, pote mason medidas

Long Earth Society build part. Jar-bodied cold sides and vacuum test chambers; a lid disc drawn at Ø70 or Ø86 clamps under the band. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Flat lids: regular mouth Ø70.00, wide mouth Ø86.00, both 0.154 mm thick. Each file is a plain disc at those sizes.
  • Not drawn, because no dimension is published for it: the sealing-compound ring and the formed (embossed) profile.
  • The lid sits on the jar's glass rim inside the band; the regular band's thread root is Ø71.22, so the Ø70.00 lid sits inside it.

Mason jar flat lids: regular Ø70.00 and wide-mouth Ø86.00 size chart

liddia (mm)thickness (mm)
regular mouth70.00.154
wide mouth86.00.154

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
flat lid on jar mouth under the bandØ70.00 disc in Ø71.22 band thread rootglass rim, clamped by the bandclampmason-lid-flat-regular-70*
flat lid on jar mouth under the bandØ86.00 discwide-mouth glass rim and bandclampmason-lid-flat-wide-86*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaMason jarwebCC BY-SA 4.0 (text)
Ball (Newell Brands)Ball canning jars and lidswebBall site verify
Comet Tool Co.70-450 continuous-thread closure drawing (part 1340-0109): T 2.804 in at skirt, E 2.700 in at midpoint, 4 TPI (.250 pitch), 1 1/4 turnsPDFmanufacturer drawing verify
WebstaurantStore (Ball 30000)Ball regular-mouth lids and bands: top diameter 2 3/4 in, height 9/16 inweblisting verify
WebstaurantStore (Ball 40000ZFP)Ball wide-mouth lids and bands: top diameter 3 3/8 in, height 5/8 inweblisting verify
Healthy CanningLids for home canning: regular mouth 70 mm (2 3/4 in), wide mouth 86 mm (3 3/8 in)website verify
The Cary Company70G-450 metal lid spec 30WG70 (GPI 450 finish; tinplate minimum nominal thickness .00605 in)PDFdistributor spec verify
Long Earth SocietyEngine builds (videos and write-ups)web, videoLES site

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mason-lid-flat-regular-70regular-mouth flat lid: Ø70.00 disc (2 3/4 in), 0.154 mm tinplate; sealing-compound ring and formed profile not drawn (no published dimensions)STEP · STL
mason-lid-flat-wide-86wide-mouth flat lid: Ø86.00 disc (3 3/8 in), 0.154 mm tinplate; sealing-compound ring and formed profile not drawn (no published dimensions)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=mason-jar-lid

Mason jar flat lids: regular Ø70.00 and wide-mouth Ø86.00, isometric render of a generated part
Render of mason-lid-flat-regular-70 from the free STEP; not to scale.

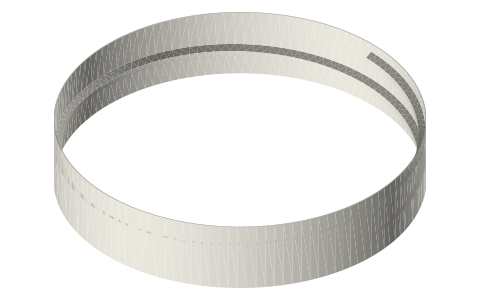

You might also need

Questions

What diameter is a regular mouth mason jar lid?

70.00 mm (2 3/4 in); a wide-mouth lid is 86.00 mm (3 3/8 in). Both are 0.154 mm tinplate.

How thick is a mason jar lid?

0.154 mm (0.00605 in) tinplate, the minimum nominal thickness in the 70-450 metal closure spec.
