MGN9, MGN12 and MGN15 rails, 150 to 400 mm

What are the MGN12 rail dimensions and hole spacing? · Hardware · basis: HIWIN MGN catalogue rail section, hole pitch and counterbore (other brands match)

Also called: mgn12 rail dimensions, mgn9 rail hole spacing, mgn15 rail, linear rail step file, mgn rail counterbore

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Rail section W × H: MGN9 9 × 6.5; MGN12 12 × 8; MGN15 15 × 10. Lengths 150, 200, 300, 400.
  • Holes Ø3.5 through with a Ø6 counterbore, 3.5 deep on MGN9 and 4.5 on MGN12 / MGN15, for M3 socket heads. Pitch 20 (MGN9), 25 (MGN12), 40 (MGN15).
  • Holes are centred along each rail: the end hole sits 12.5 from the end on every MGN12; 5 (150) or 10 on the MGN9; 15, 20, 10 and 20 on the MGN15 150–400.
  • Rail section drawn as a plain rectangle; the carriage files have the rail channel at this section.

MGN9, MGN12 and MGN15 rails, 150 to 400 mm size chart

railWHpitchholecounterboreend hole (150/200/300/400)
MGN996.520Ø3.5Ø6 × 3.55 / 10 / 10 / 10
MGN1212825Ø3.5Ø6 × 4.512.5 / 12.5 / 12.5 / 12.5
MGN15151040Ø3.5Ø6 × 4.515 / 20 / 10 / 20

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
rail holesØ3.5 through, counterbore Ø6 × 3.5 (MGN9) / 4.5M3 socket head screwsdesignedall
carriage holesM3 (Ø3 major)M3 screwsdesignedall
rail section9 × 6.5 / 12 × 8 / 15 × 10carriage channeldesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

HIWINMGN series linear guideway cataloguePDF, STEPHIWIN site terms verify
WikipediaLinear-motion bearingwebCC BY-SA 4.0 (text)

Free files

★ Free files 12 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mgn9-rail-150MGN9 rail 150 mm, 20 mm hole pitchSTEP · STL
mgn9-rail-200MGN9 rail 200 mm, 20 mm hole pitchSTEP · STL
mgn9-rail-300MGN9 rail 300 mm, 20 mm hole pitchSTEP · STL
mgn9-rail-400MGN9 rail 400 mm, 20 mm hole pitchSTEP · STL
mgn12-rail-150MGN12 rail 150 mm, 25 mm hole pitchSTEP · STL
mgn12-rail-200MGN12 rail 200 mm, 25 mm hole pitchSTEP · STL
mgn12-rail-300MGN12 rail 300 mm, 25 mm hole pitchSTEP · STL
mgn12-rail-400MGN12 rail 400 mm, 25 mm hole pitchSTEP · STL
mgn15-rail-150MGN15 rail 150 mm, 40 mm hole pitchSTEP · STL
mgn15-rail-200MGN15 rail 200 mm, 40 mm hole pitchSTEP · STL
mgn15-rail-300MGN15 rail 300 mm, 40 mm hole pitchSTEP · STL
mgn15-rail-400MGN15 rail 400 mm, 40 mm hole pitchSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=mgn-rails

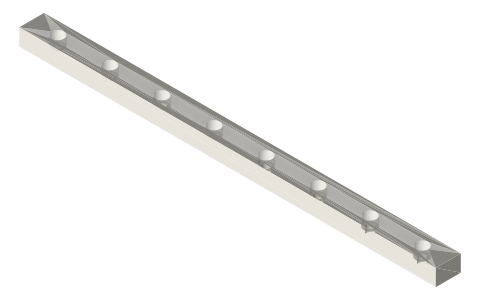

MGN9, MGN12 and MGN15 rails, 150 to 400 mm, isometric render of a generated part
