microSD push-push socket, Hirose DM3D-SF

How big is a microSD card socket? · Standard part · basis: KiCad 3D model of the Hirose DM3D-SF push-push microSD socket

Also called: microsd socket size, microsd card slot dimensions, hirose dm3d step, push push microsd, microsd connector 3d model

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • The model's envelope is 11.95 × 11.45 mm and 1.55 mm tall above the board.
  • In a push-push socket the card protrudes about 1.5 mm when inserted and about 4 mm when ejected.
  • The model comes from the KiCad 3D library (kicad-packages3D), licensed CC BY-SA 4.0 with the KiCad exception, and is rehosted unmodified (STL converted from the STEP) with the library's LICENSE.md and CREDITS.md beside the files; using it in your own design does not make your design share-alike.

microSD push-push socket, Hirose DM3D-SF size chart

partbbox l (mm)bbox w (mm)bbox h (mm)
microsd-hc-hirose-dm3d-sf11.9511.451.55

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
microSD socket (Hirose DM3D-SF)envelope 11.95 × 11.45 × 1.55 above the boardmicroSD card; push-push, protrudes about 1.5 inserted and 4 ejecteddesignedall

Where the files are

Files below are rehosted from this library under its share-alike license, with its license and credits beside them. "verify" = check the license at the link before commercial use.

KiCadkicad-packages3D library (origin of these files)STEP, WRLCC BY-SA 4.0 with KiCad exception

Free files

★ Free files 1 parts. From the KiCad library contributors, rehosted with their license and credits. CC BY-SA 4.0 (KiCad library license, with the KiCad exception). index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
microsd-hc-hirose-dm3d-sfKiCad Connector_USB: microSD_HC_Hirose_DM3D-SF; bbox 11.9 × 11.5 × 1.6 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=microsd-socket

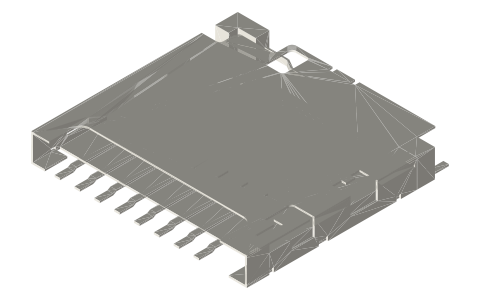

microSD push-push socket, Hirose DM3D-SF, isometric render of a generated part
Render of microsd-hc-hirose-dm3d-sf from the free STEP; not to scale.

You might also need

Questions

How big is a microSD socket?

The Hirose DM3D-SF model is 11.95 × 11.45 × 1.55 mm.

How far does a microSD card stick out of a push-push socket?

About 1.5 mm inserted and 4 mm when ejected.
