Mitred half lap joint

What is a mitred half lap joint? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions

Also called: mitred half lap, mitered half lap, half lap mitre, media madera a inglete, Gehrungsblatt

Exact dimensions. True size, with no tolerance added.

length
60.0 mm
width
60.0 mm
height
20.0 mm

Notes

  • Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
  • A half lap that shows a mitre on the front face — the strength of a lap with the look of a mitre.

Mitred half lap joint size chart

dimensionvalue
stock20 × 20 mm square
partspart a, part b
lap10 mm
mitre45° on the show face
assemblesB drops onto A
holdsracking; pin it against lifting

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem StudioJoinery design (geometry computed in the generator from traditional proportions)webXem Studio design

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mitred-half-lap-joint-part-aMember A: full lower half under the corner, mitred upper halfSTEP · STL
mitred-half-lap-joint-part-bMember B: mitred upper half only at the cornerSTEP · STL
mitred-half-lap-joint-assembledAll parts in their assembled position (each part its own solid)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=mitred-half-lap-joint

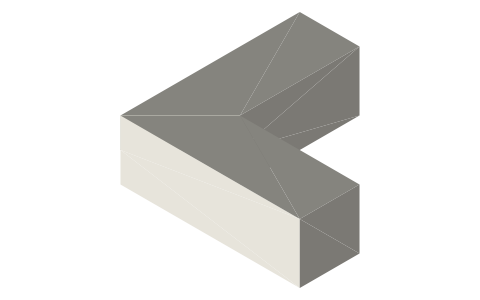

Mitred half lap joint, isometric render of a generated part
Render of mitred-half-lap-joint-assembled from the free STEP; not to scale.

Fits with

Questions

Why a mitred half lap?

The face shows a clean mitre while the lap underneath does the work.
