Bottom plate Ø90 × 6 that sits on an 11 oz mug

What plate sits on top of a standard 11 oz mug? · Hardware · basis: Ø90 chosen to sit on an 11 oz mug (rim Ø82.55 = 3.25 in, listing cited) with 3.7 mm overhang; proportions scaled from the LTD kit

Also called: coffee mug stirling engine plate, mug stirling engine size, ltd stirling hot plate 90mm

Long Earth Society build part. The hot plate of the mug LTD. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Ø90 × 6 hot plate. The 11 oz mug's rim is Ø82.55 (3.25 in); the plate overhangs it by 3.7 mm all round and its underside is flat: the chamber screws go into M3 tapped holes (Ø2.5 tap drill, through) and stop 2 mm above the underside, so nothing stands proud where the plate rests on the rim.
  • 5 × M3 tapped on R41 at 60°, 120°, 180°, 240° and 300° (0° is under the syringe socket); the chamber ring and the top plate stack on it (ring 23, top plate 3) and five M3 × 30 from the top plate reach 4 mm into it.

Bottom plate Ø90 × 6 that sits on an 11 oz mug size chart

featuresize (mm)
plateØ90 × 6
screw circleR41, 5 × M3 tapped Ø2.5
mug rim (11 oz)Ø82.55

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
chamber screw holesØ2.5 (M3 tapped), 5 on R41shcs-m3x30designedall
underside on the mug rimØ90 flat on an Ø82.55 rim11 oz mug (found object)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Atlanta Vinyl StorePremium 11 oz sublimation mug: 3.75 in H × 3.25 in Dweblisting verify
James R. SenftAn Introduction to Low Temperature Differential Stirling EnginesbookMoriya Press verify
WikipediaStirling enginewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mug-ltd-bottom-plate-90bottom (hot) plate Ø90 × 6, 5 × M3 tapped (Ø2.5) through on R41 at 60°, 120°, 180°, 240°, 300°; rests on an 11 oz mug rim (Ø82.55)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=mug-top-plate-90

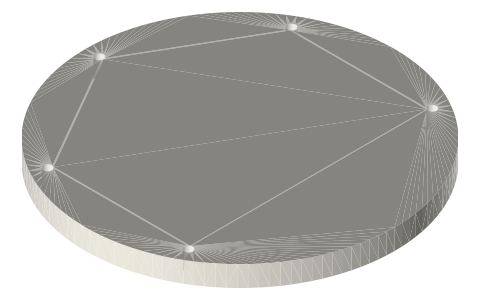

Bottom plate Ø90 × 6 that sits on an 11 oz mug, isometric render of a generated part
Render of mug-ltd-bottom-plate-90 from the free STEP; not to scale.

Fits with

Questions

Will a Ø90 plate sit on a coffee mug?

On an 11 oz mug (rim Ø82.55) yes, with 3.7 mm overhang; 15 oz mugs are wider, so measure yours.
