NEMA 8 stepper motor: 20.2 mm face, 16 mm hole pattern

What are the NEMA 8 stepper motor dimensions? · Hardware · basis: NEMA ICS 16 frame size 8 (face and mounting-hole pattern); pilot boss and shaft as commonly supplied; body length varies with torque. Envelope only: the outside of the motor. The windings, rotor and bearings inside are not drawn.

Also called: nema 8, nema8, nema 8 dimensions, nema 8 mounting holes, nema 8 hole pattern, nema 8 stepper step, nema 8 stl

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • Envelope only: the outside of the motor. The windings, rotor and bearings inside are not drawn.
  • NEMA 8 is a 0.8 in face: 20.2 mm square, with chamfered corners. The face and hole pattern are the standard; the body length is the maker's.
  • Four M2 tapped holes on a 16 mm square, drawn as plain bores at the thread's major diameter (Ø2) 8 mm deep.
  • Pilot boss Ø15 × 1.5; shaft Ø4 × 10 from the boss.
  • Files: 30, 38 mm bodies. Leads and connector are not drawn.
  • In DIY Stirling builds, a stepper turned by the engine is used as a two-phase generator; each coil pair gives AC that is rectified for a load.

NEMA 8 stepper motor: 20.2 mm face, 16 mm hole pattern size chart

featuremm
face20.2 × 20.2
hole pattern16 × 16
holes4 × M2 tapped
pilot bossØ15 × 1.5
shaftØ4 × 10
body lengths drawn30, 38

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
pilot bossØ15 / 22 / 22 / 38.1 / 73mount pilot boreslidenema*
shaftØ4 / 5 / 5 / 6.35 / 14coupler or pulley boreslidenema*
mount holesM2 / M2.5 / M3 tapped, Ø5.1 / Ø5.5 throughmount screwsdesignednema*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaStepper motorwebCC BY-SA 4.0 (text)
NEMAICS 16 motion/position control motors and controlsPDFNEMA standard, purchase

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
nema8-30NEMA 8 envelope, 30 mm body, 16.0 mm hole pattern (M2 tapped), Ø4.0 shaftSTEP · STL
nema8-38NEMA 8 envelope, 38 mm body, 16.0 mm hole pattern (M2 tapped), Ø4.0 shaftSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=nema-8-stepper

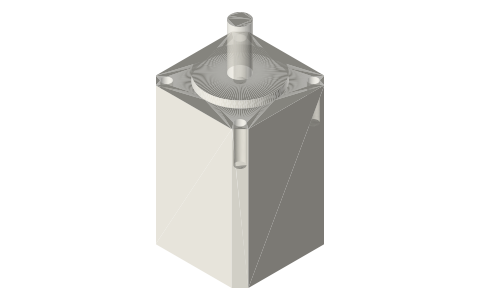

NEMA 8 stepper motor: 20.2 mm face, 16 mm hole pattern, isometric render of a generated part
Render of nema8-30 from the free STEP; not to scale.

You might also need

Questions

What is the NEMA 8 hole pattern?

4 × M2 tapped on a 16 × 16 mm square, on a 20.2 mm face.

What is the NEMA 8 shaft size?

Ø4 mm as commonly supplied (10 mm out from the Ø15 pilot boss).

How long is a NEMA 8 stepper?

The standard fixes the face, not the length. Common bodies: 30, 38 mm; longer bodies give more torque.
