Parallel ruler blade 200 × 20 × 5, pivot hole and 3 mm slot

What is a parallel ruler blade? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: parallel ruler, rolling ruler blade, regla paralela, Parallellineal

Exact dimensions. True size, with no tolerance added.

length
200.0 mm
width
20.0 mm
height
5.0 mm

Notes

  • 200 × 20 × 5 straight-edge with a Ø3 pivot hole 40 mm left of centre and a 3 mm slot from 12 to 40 mm right of centre: two blades and two crossed 80 mm links make a parallel ruler that opens 0–55 mm.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Parallel ruler blade 200 × 20 × 5, pivot hole and 3 mm slot size chart

dimensionvalue
blade200 × 20 × 5 mm
pivot holeØ3 at x = −40
slot3 mm wide, centres x = 12 … 40

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 324: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
parallel-ruler-blade-200blade, z 0..5STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=parallel-ruler-blade-200

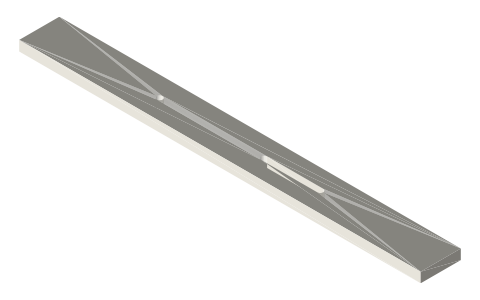

Parallel ruler blade 200 × 20 × 5, pivot hole and 3 mm slot, isometric render of a generated part
