Right-triangle ruler 120 × 40 × 4 (half of a sliding parallel ruler)

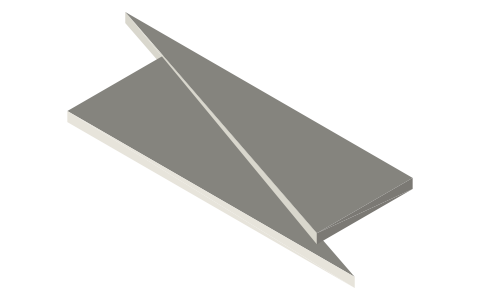

What is a sliding-triangle parallel ruler? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: sliding parallel ruler, triangle ruler, regla de triángulos deslizantes, Schiebedreieck-Parallellineal

Exact dimensions. True size, with no tolerance added.

length
120.0 mm
width
40.0 mm
height
4.0 mm

Notes

  • Right triangle with 120 and 40 mm legs, 4 mm thick: two of them, laid hypotenuse to hypotenuse, form a 120 × 40 rectangle whose long edges stay parallel as one triangle slides along the other.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Right-triangle ruler 120 × 40 × 4 size chart

dimensionvalue
legs120 × 40 mm
hypotenuse126.49 mm
thickness4 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 322: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
parallel-ruler-triangle-120x40triangle, right angle at the originSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=parallel-ruler-triangle-120x40

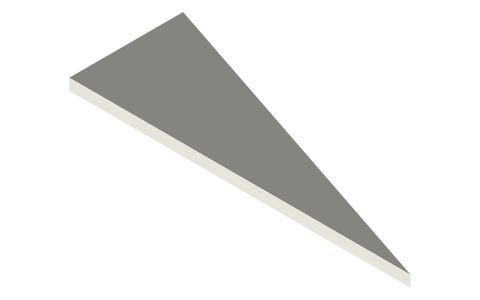

Right-triangle ruler 120 × 40 × 4 (half of a sliding parallel ruler), isometric render of a generated part
Render of parallel-ruler-triangle-120x40 from the free STEP; not to scale.

Fits with

Questions

What is a sliding-triangle parallel ruler?

Right triangle with 120 and 40 mm legs, 4 mm thick: two of them, laid hypotenuse to hypotenuse, form a 120 × 40 rectangle whose long edges stay parallel as one triangle slides along the other.
