Top plate Ø90 with a rod guide and a 5 mL glass syringe socket

What plate holds a glass syringe and a rod guide? · Hardware · basis: My geometry: the LTD kit's top plate scaled to Ø90, with the socket drawn at the 5 mL glass barrel's published OD (Ø15.40, KD Scientific)

Also called: ltd stirling top plate glass syringe, mug stirling top plate

Long Earth Society build part. Cold plate of the mug LTD. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • Rod guide: Ø2 bore 13 long through the 3 mm plate and the Ø20 × 10 boss; the 2 mm displacer rod runs in it (that close fit is the seal).
  • Syringe socket at x 35: Ø15.40 × 12 deep in a Ø18.4 boss, floor 9 above the plate's underside; the barrel's end sits on the floor and its Luer cone (7.5 long) stands in the Ø5 port below, its tip 1.5 above the plate's underside, so nothing reaches into the chamber. The port's outer edge is at R37.5, inside the Ø76 bore.
  • 7 × Ø3.4: five chamber screws on R41 and two for the crank pedestal's foot at (35.5, ±20.5).

Top plate Ø90 with a rod guide and a 5 mL glass syringe socket size chart

featuresize (mm)
plateØ90 × 3
rod guideØ2 × 13
syringe socketØ15.40 × 12, floor at 9, x 35
portØ5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
rod-guide boreØ2 × 13Ø2 displacer rod (slides through it)runall
syringe socketØ15.40 × 125 mL glass syringe barrelsocketall
Luer portØ5Luer cone (no contact)designedall
screw holesØ3.4 × 7M3 clearancedesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Atlanta Vinyl StorePremium 11 oz sublimation mug: 3.75 in H × 3.25 in Dweblisting verify
James R. SenftAn Introduction to Low Temperature Differential Stirling EnginesbookMoriya Press verify
WikipediaStirling enginewebCC BY-SA 4.0 (text)
KD ScientificFull Line of Glass Syringes, rev. A (order codes 78-0871 to 78-0880): piston OD, barrel OD D1, barrel collar D2, piston collar D3, length LPDFmanufacturer datasheet verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mug-ltd-top-plate-90-glass5top (cold) plate Ø90 × 3: Ø2 rod-guide bore 13 long through the plate and a Ø20 × 10 boss; Ø15.40 socket for the 5 mL glass syringe barrel at x 35 (floor 9 above the plate's underside, 12 deep, Ø18.4 boss) over a Ø5 port; 7 × Ø3.4STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=plate-90-rod-guide-syringe-socket

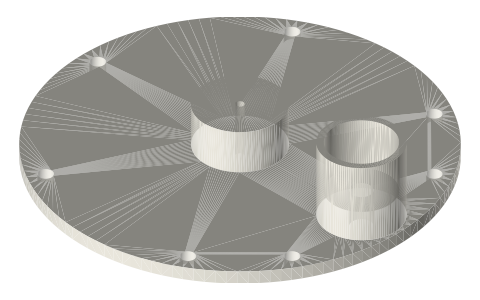

Top plate Ø90 with a rod guide and a 5 mL glass syringe socket, isometric render of a generated part
